Use the links below to jump to specific areas, or read from top to bottom and use the links within each section to navigate between areas:

• Getting Started
• About The Files
• TAG Files
• CAPK Files
• Download CAPK and/or TAG Files
• Install CAPK and/or TAG Files

Getting Started (return to top)

1. Download CardReader CAPK and TAG Files provided below
2. Confirm Magtek Configuration Application is installed on target iPad
   1. If not, you can download the application for free using the Apple App Store
3. Confirm CardReader and iPad have proper charge
   1. For best results, ensure Reader and iPad are connected to power
4. Confirm CardReader is Connected to iPad

About the Files (return to top)

There are (10) files altogether: (5) CAPK and (5) TAG. Coordinate with either your SALIDO Account Manager or SALIDO Support to confirm if you need to install these files. You will need to install them on all CardReaders you plan to use to take payments with.

The latest Magtek Configuration Files as of June 28th, 2023 are available to download below.

TAG Files (return to top)

1. TAG1
2. TAG2
3. TAG3
4. TAG4
5. TAG5

CAPK Files (return to top)

1. CAPK1
2. CAPK2
3. CAPK3
4. CAPK4
5. CAPK5

Download CAPK and/or TAG files (return to top)

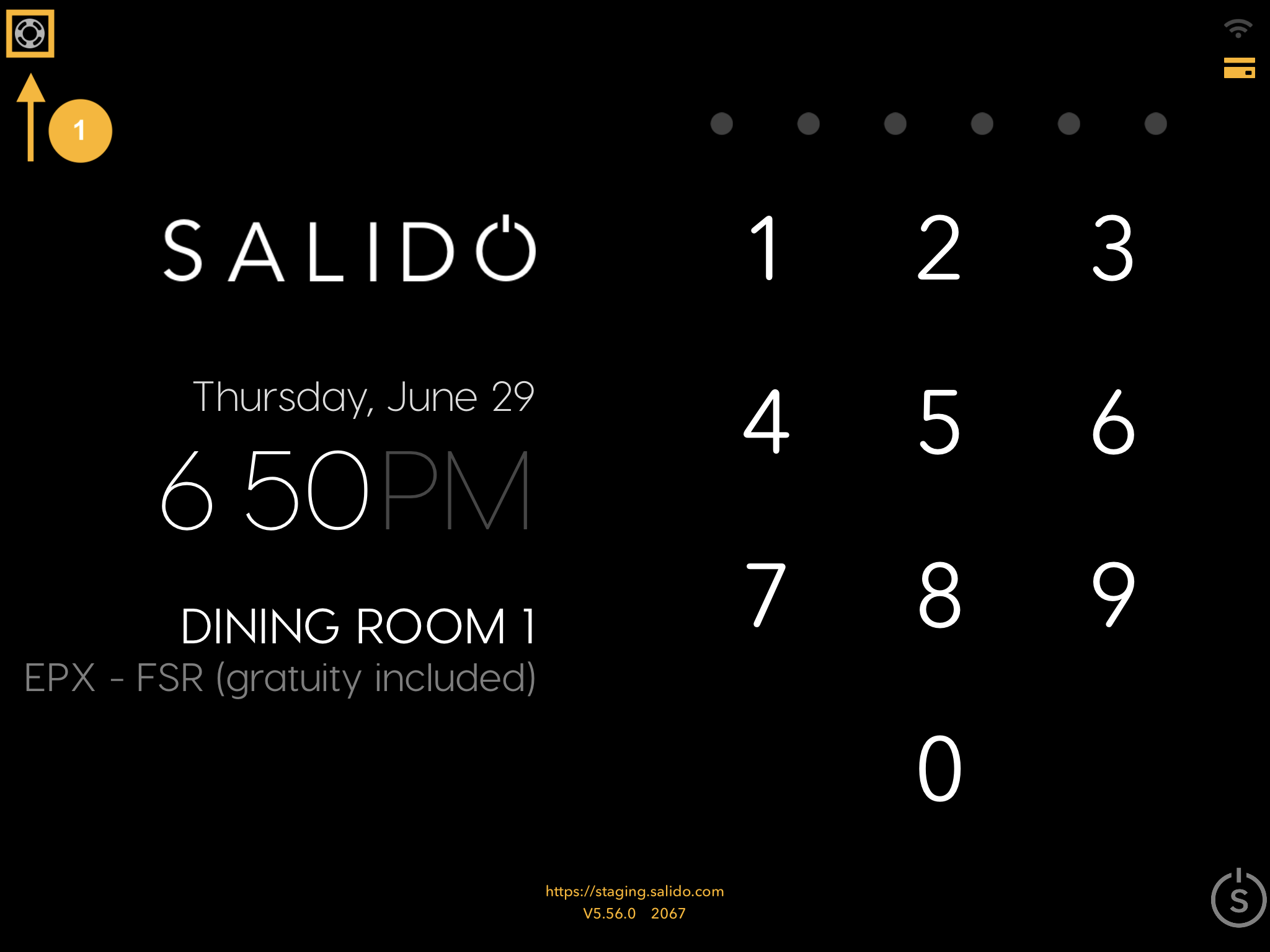

On your SALIDO login screen select the life preserver icon

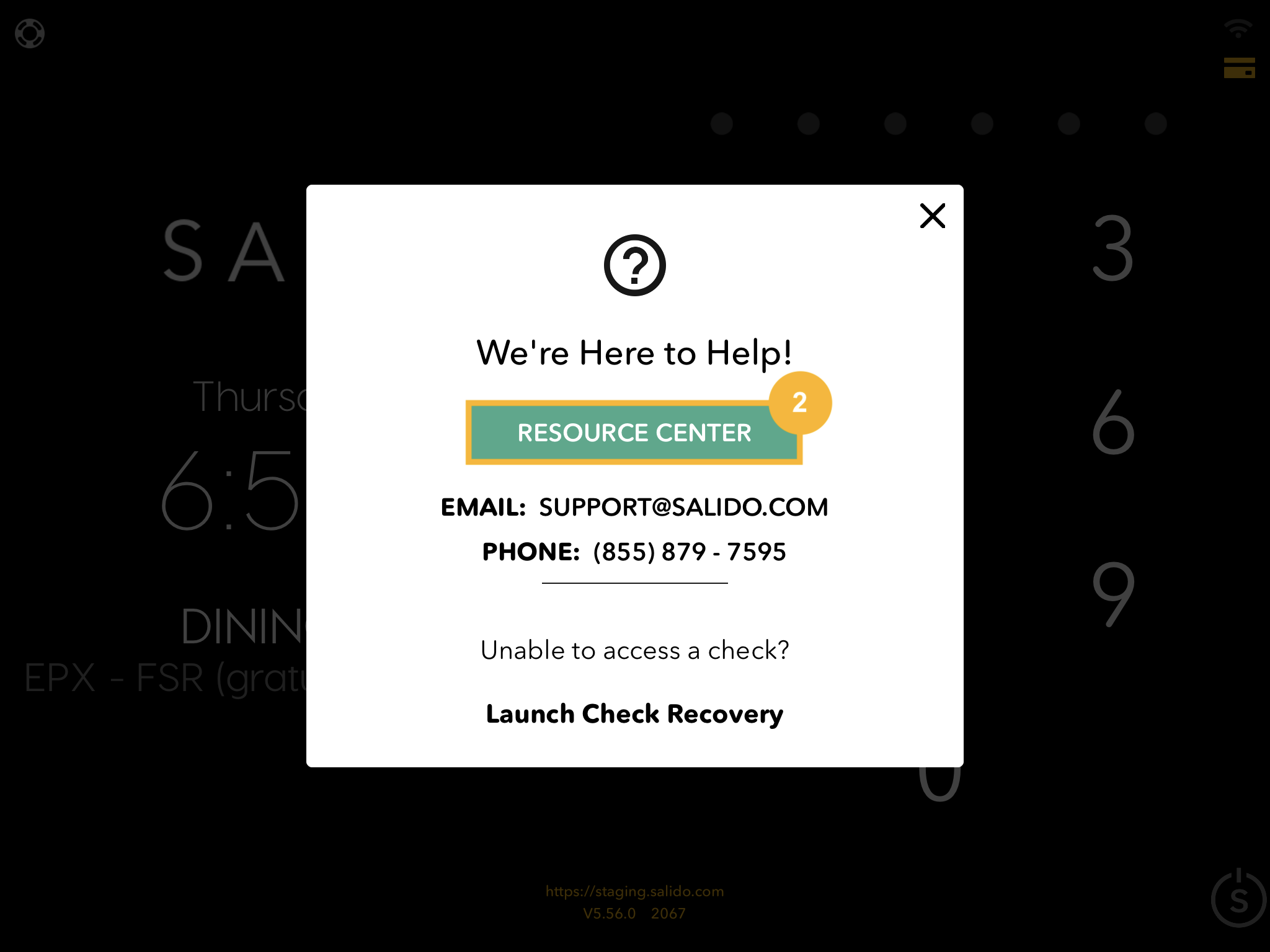

Select RESOURCE CENTER

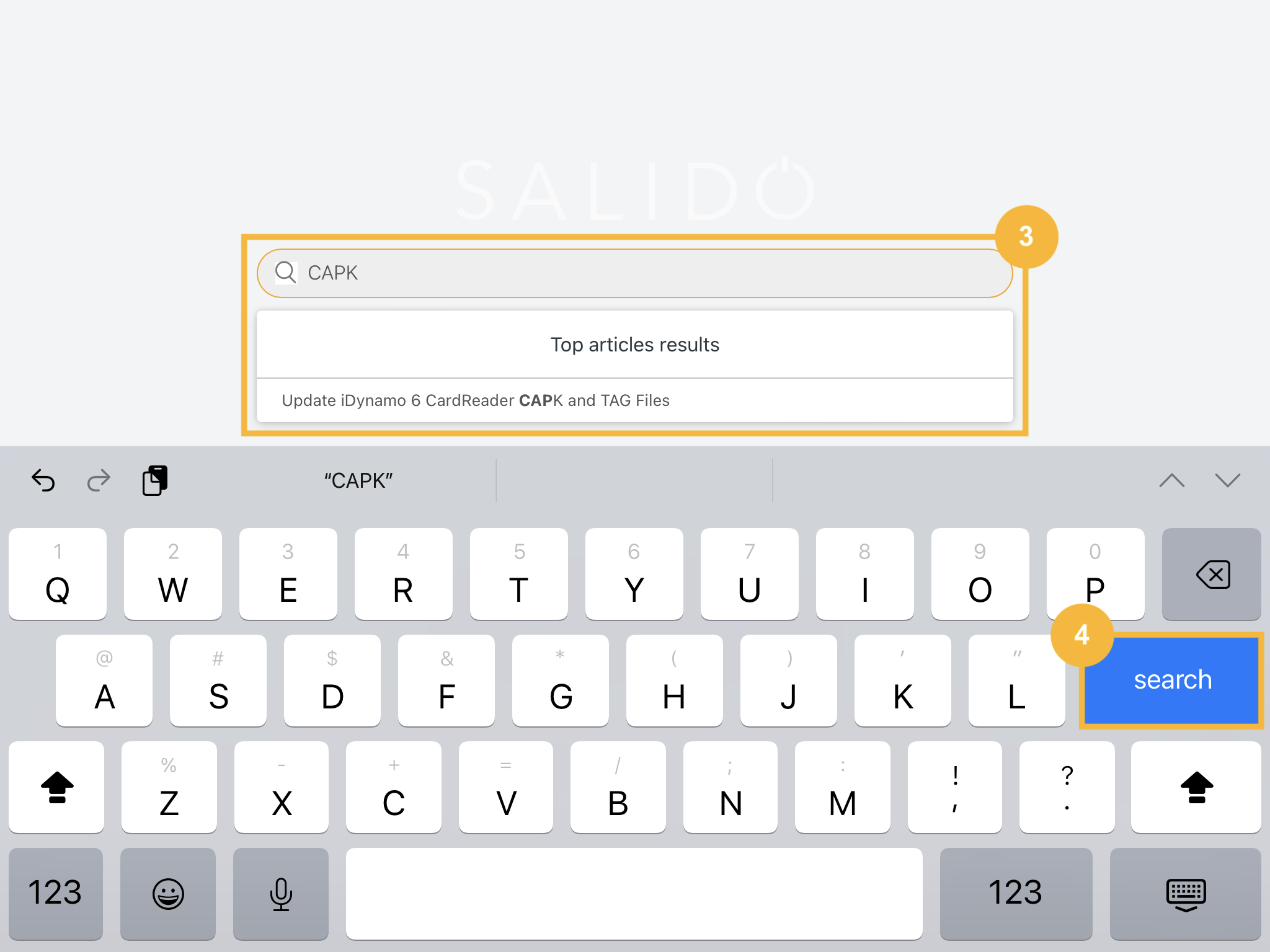

In the search bar, search for the CAPK and TAG files Select Search

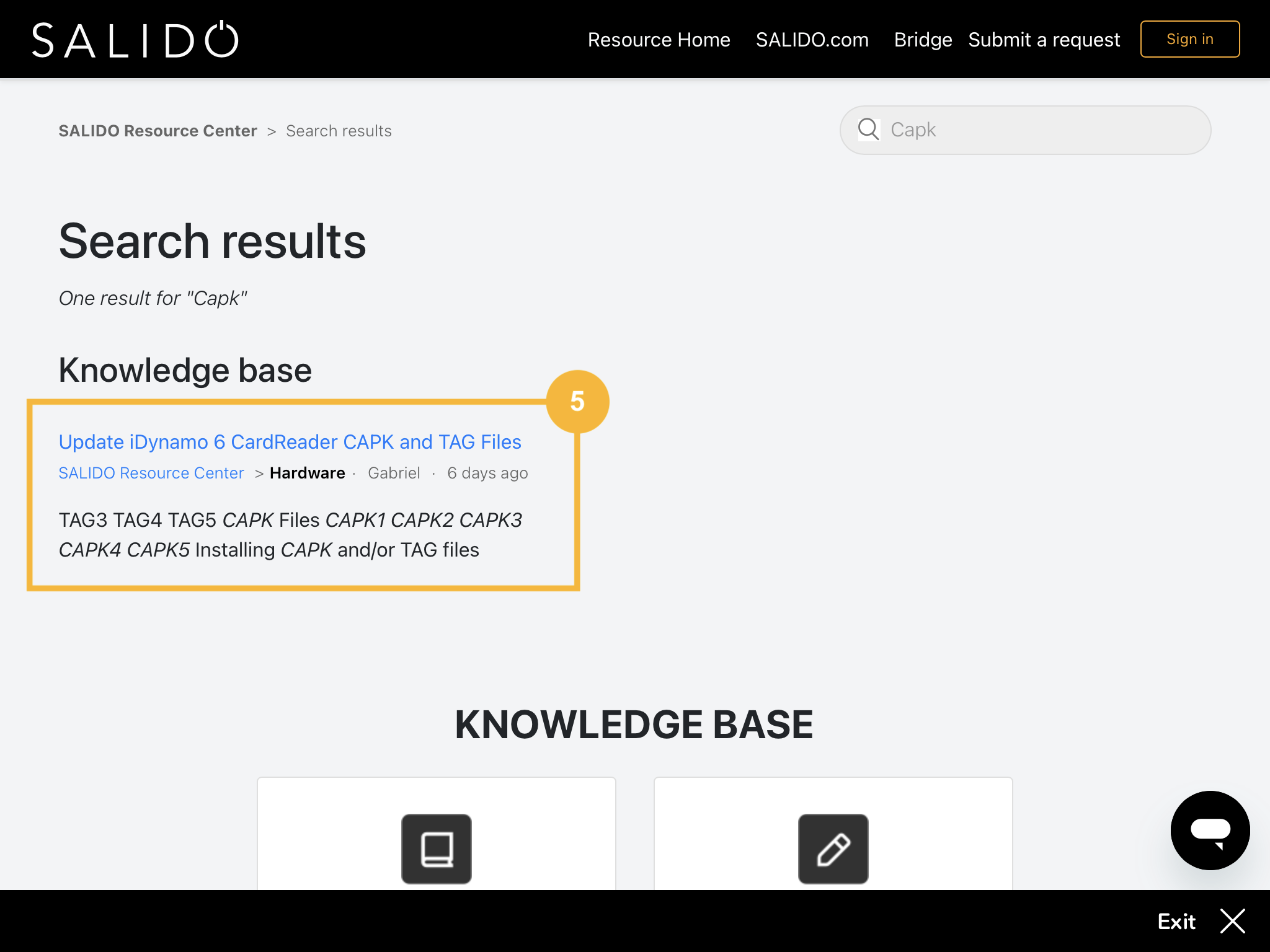

Long press on the CAPK/TAG file article

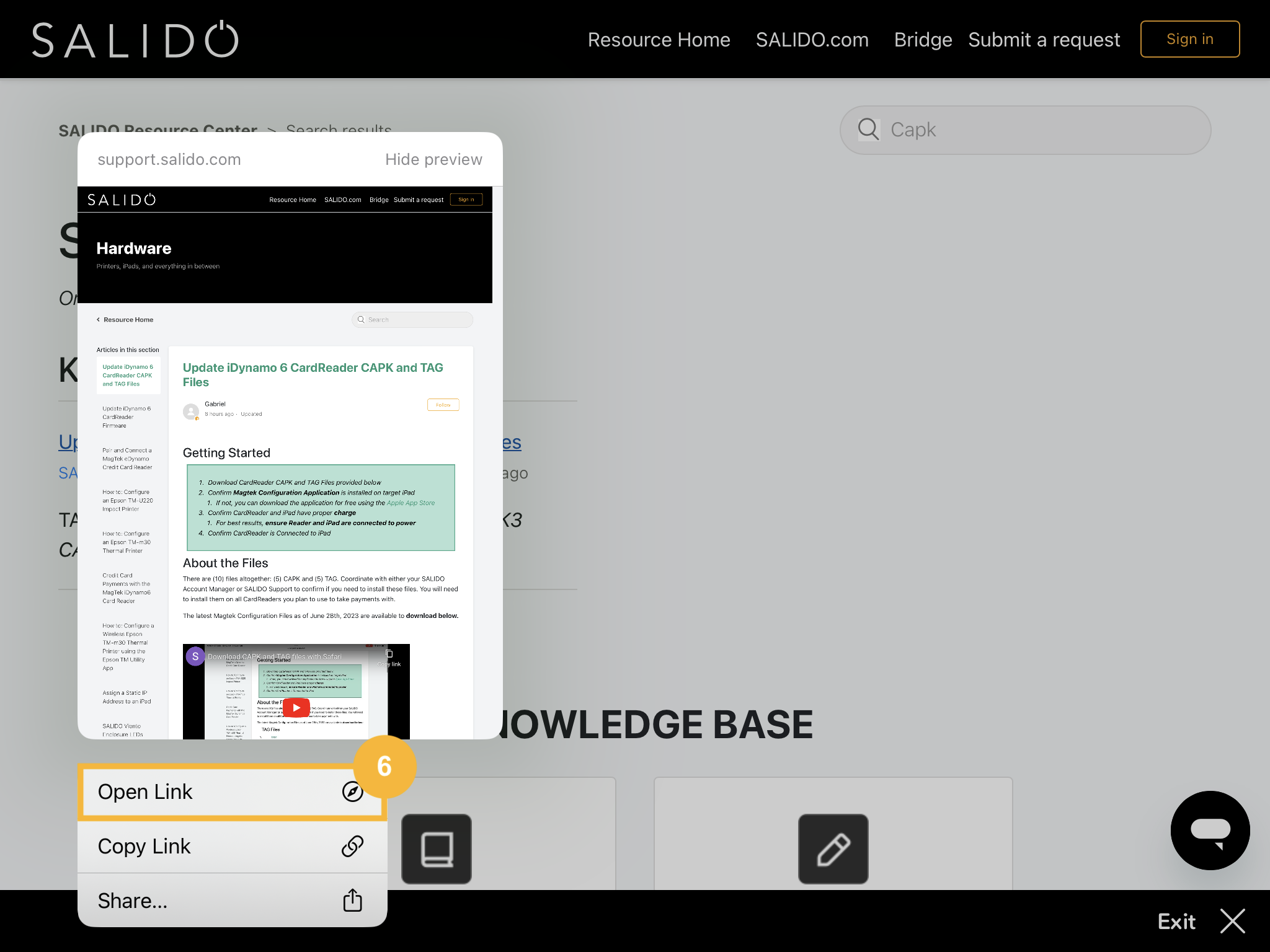

Select Open Link  Ensure Safari is set as your default browser

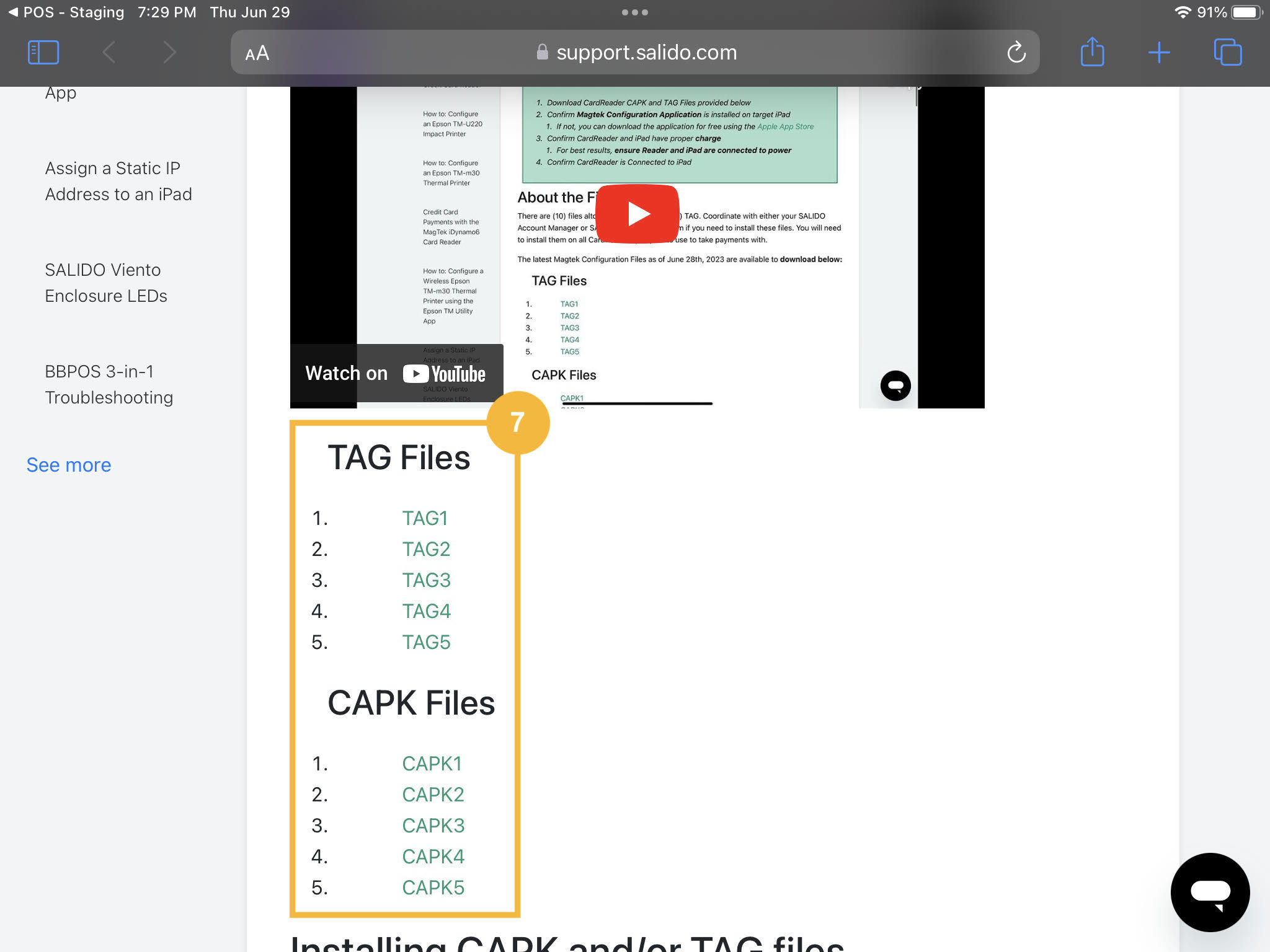

Long press on each file, one at a time

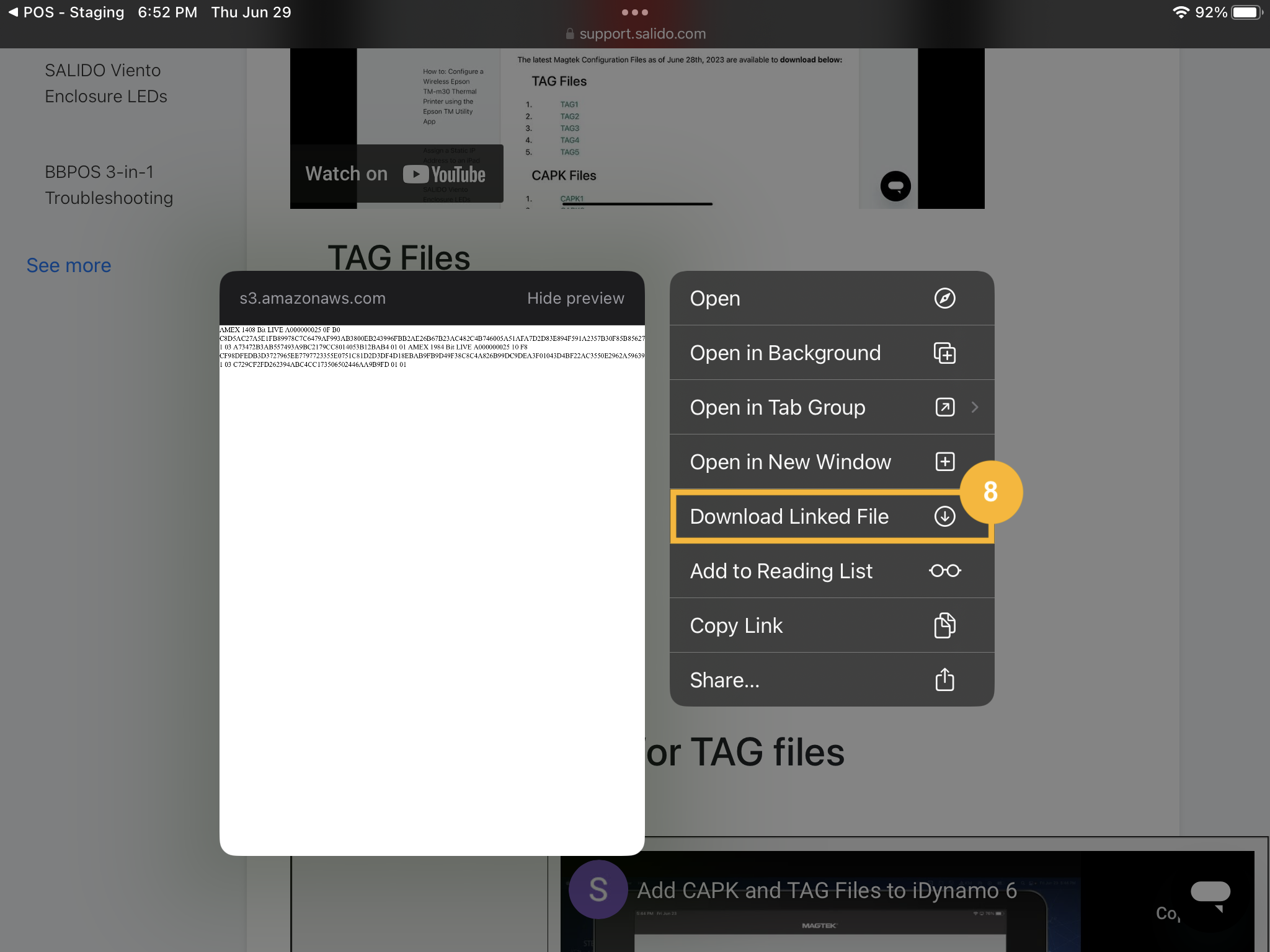

Select Download Linked File

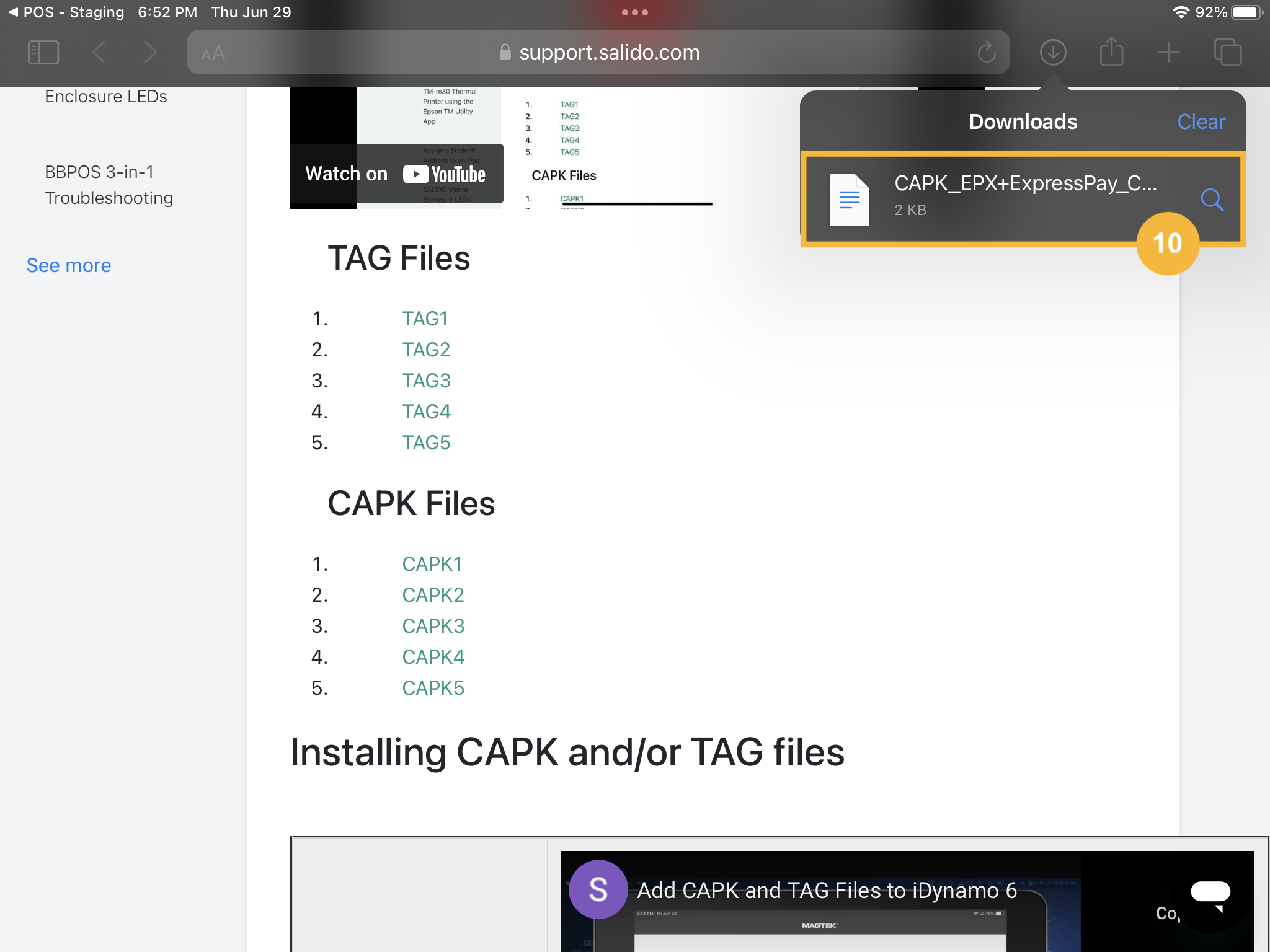

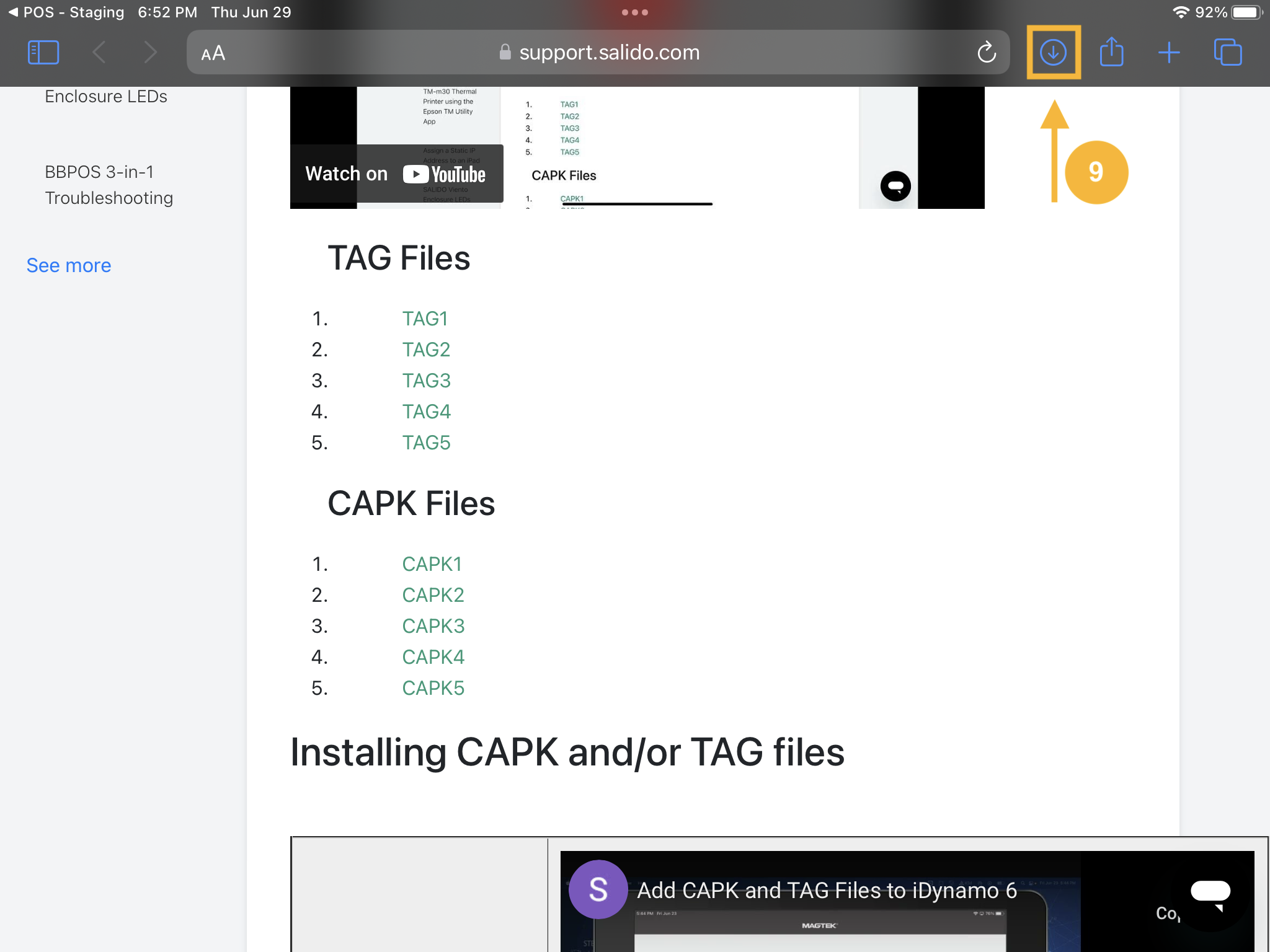

Select the blue downward-facing arrow
Select the file you just downloaded

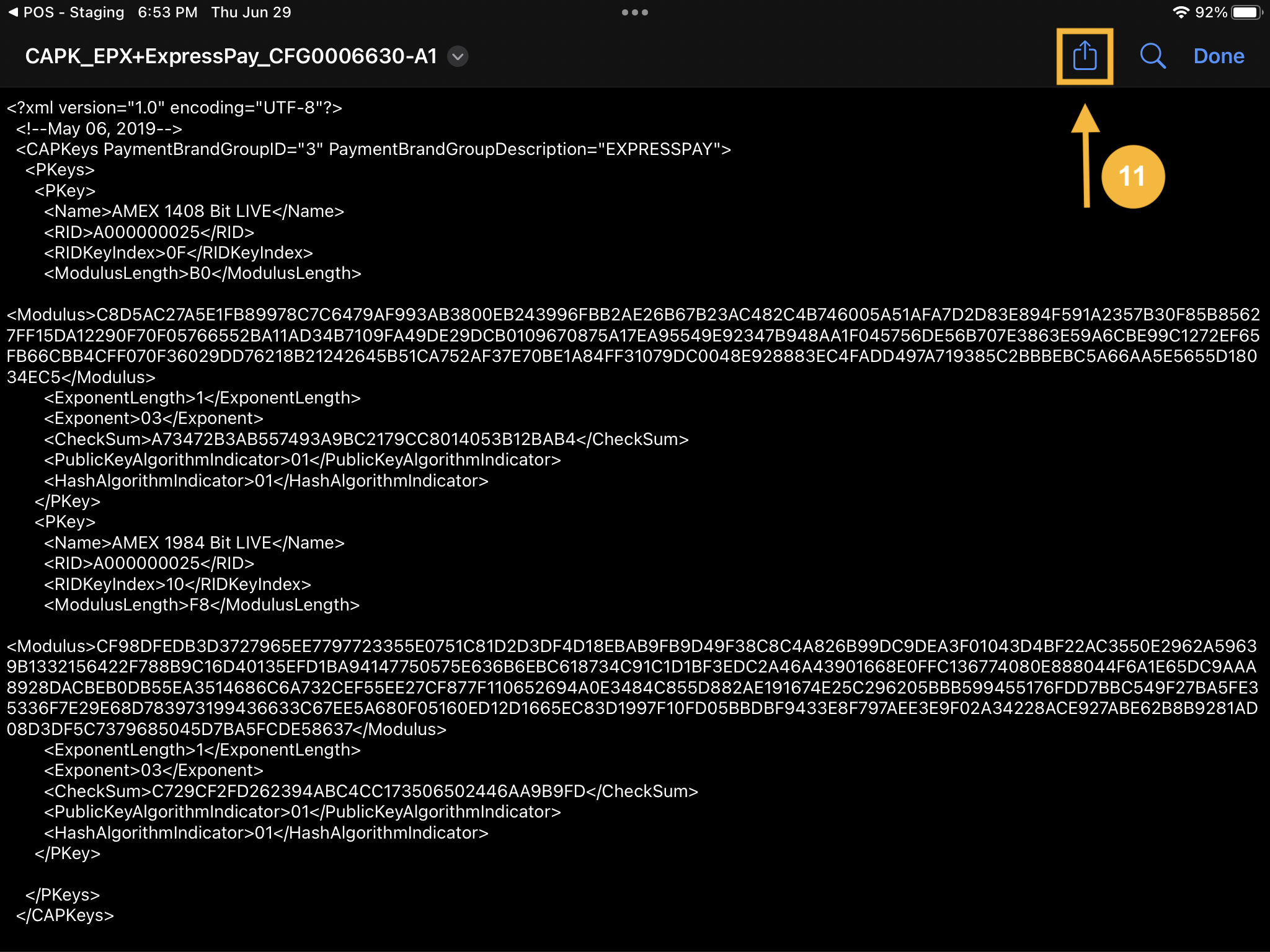

Select the blue upward-facing arrow

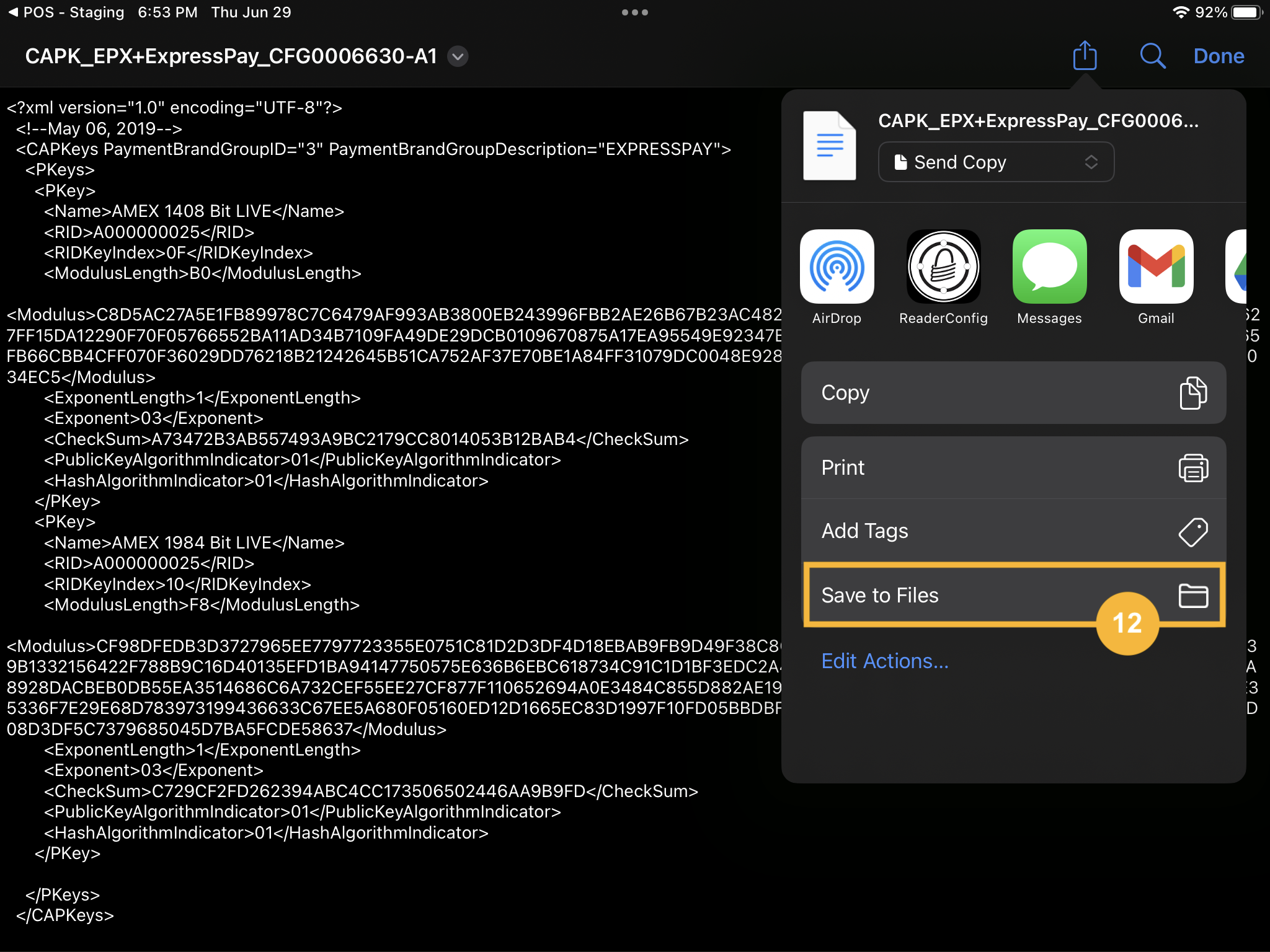

Select Save to Files

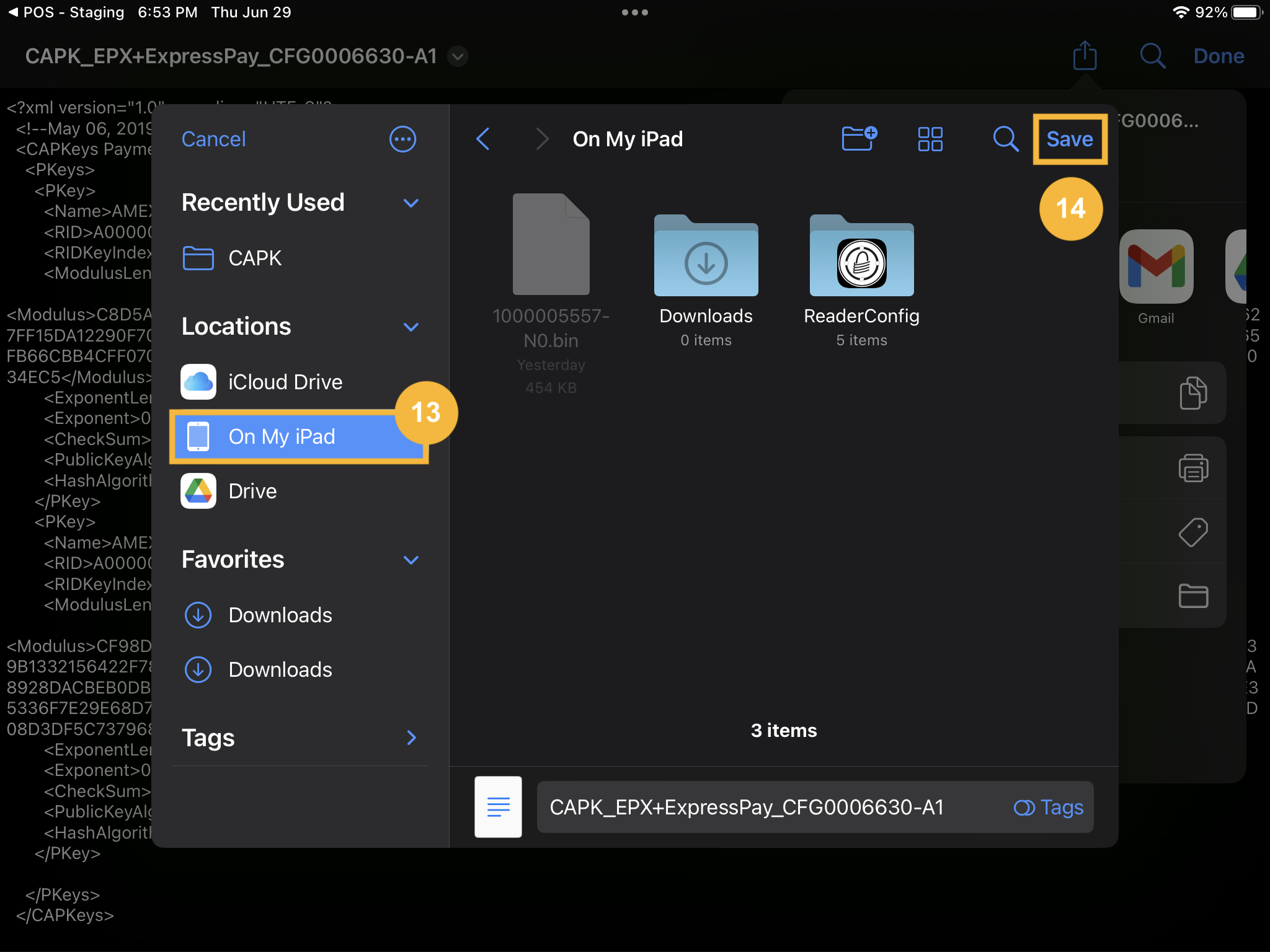

Select On My iPad Select Save

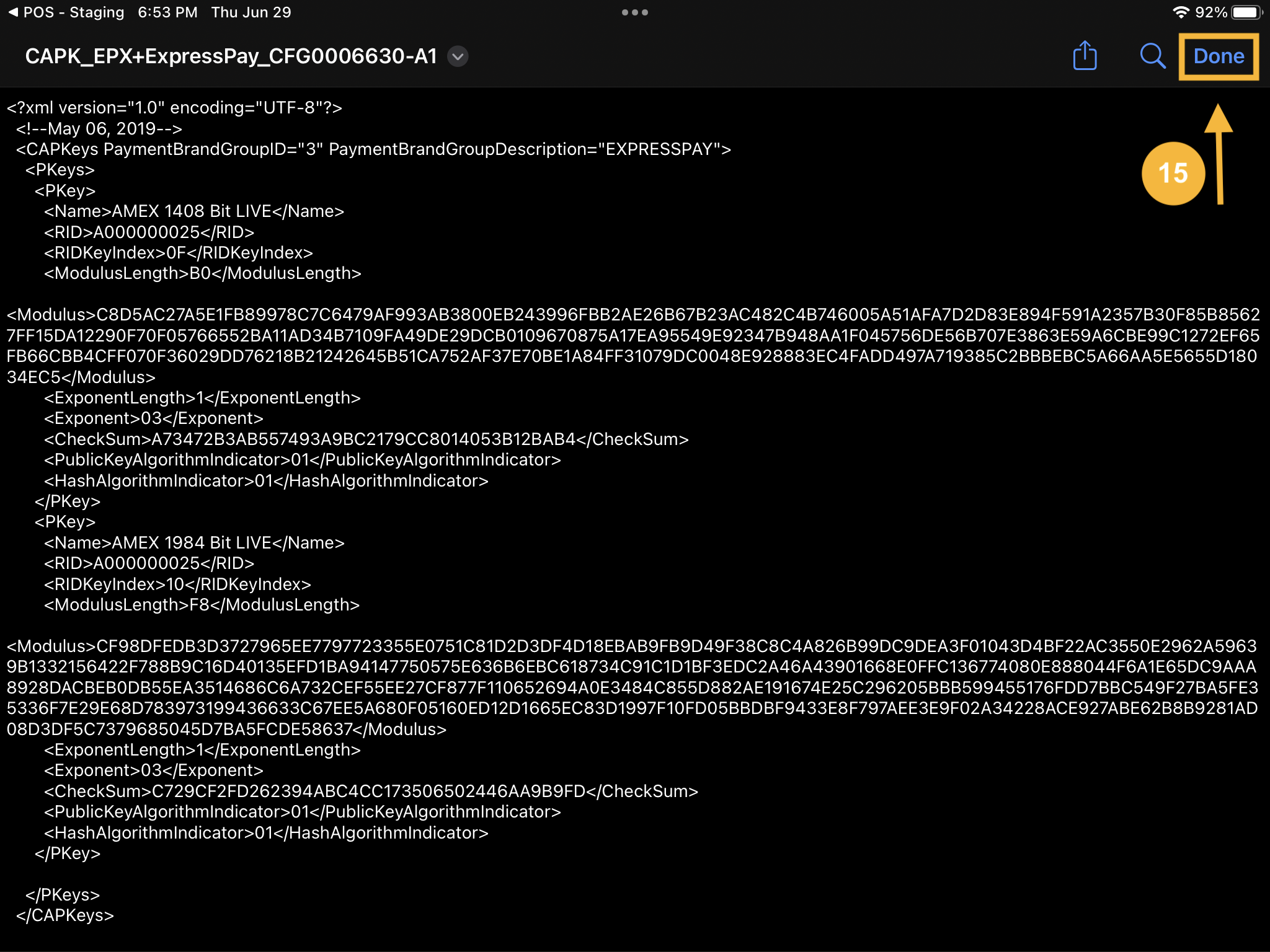

Select Done Repeat Steps 7-15 for the remaining (9) files

Install CAPK and/or TAG files (return to top)

Video Walkthrough

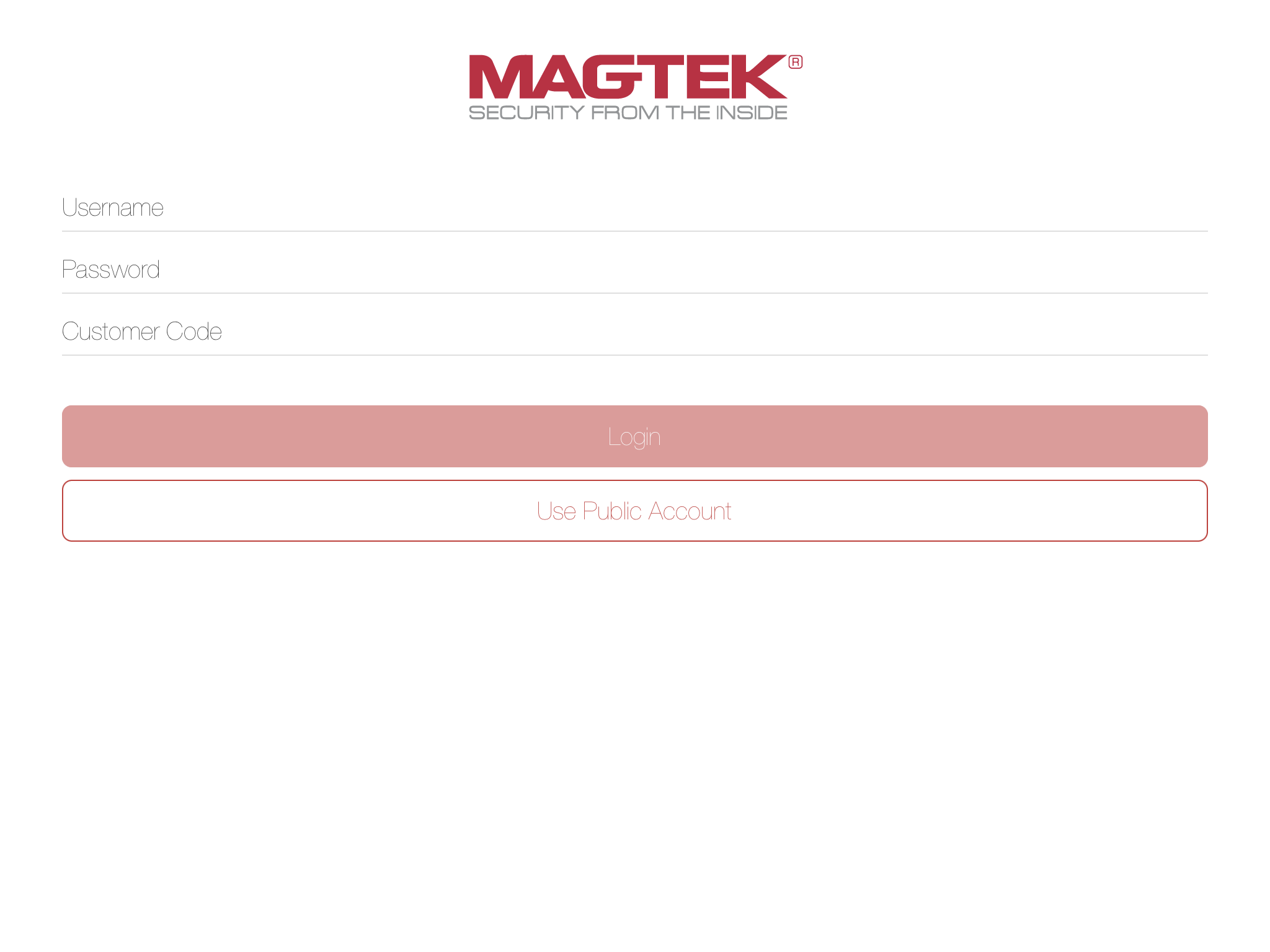

Open Magtek Configuration Application On the login Screen Select Use Public Account

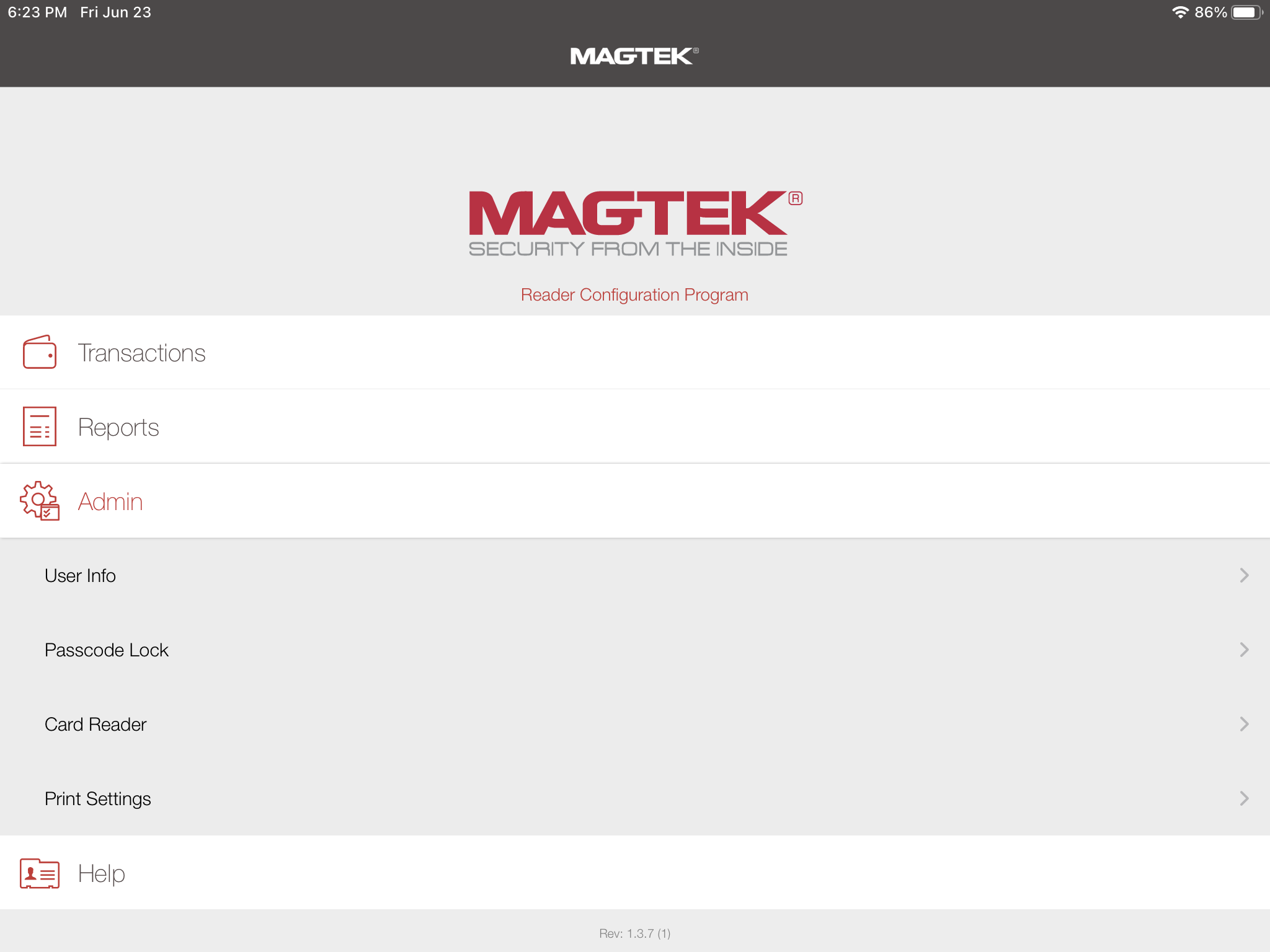

From the left menu, Select Admin Select Card Reader

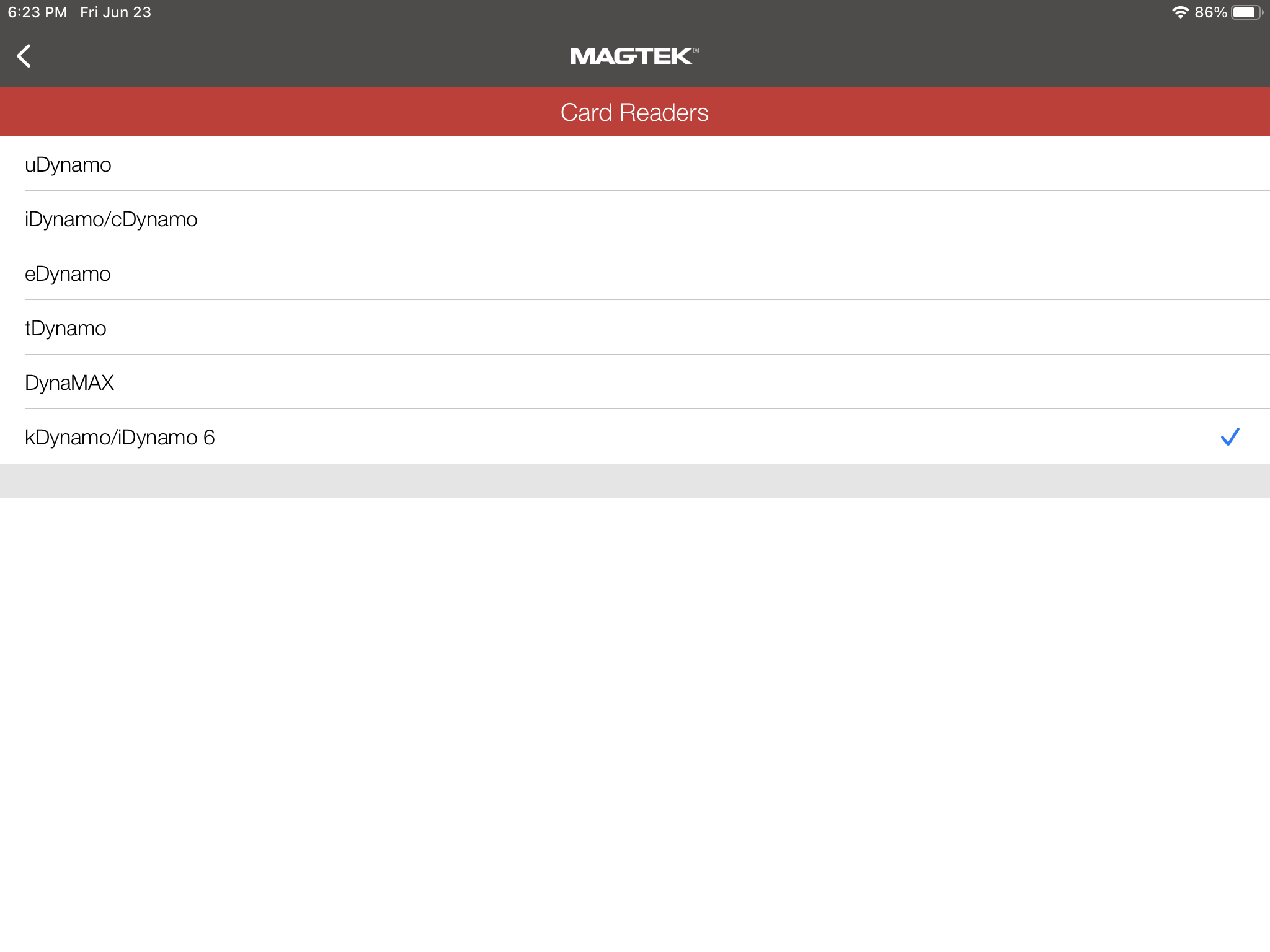

Select kDynamo/iDynamo 6

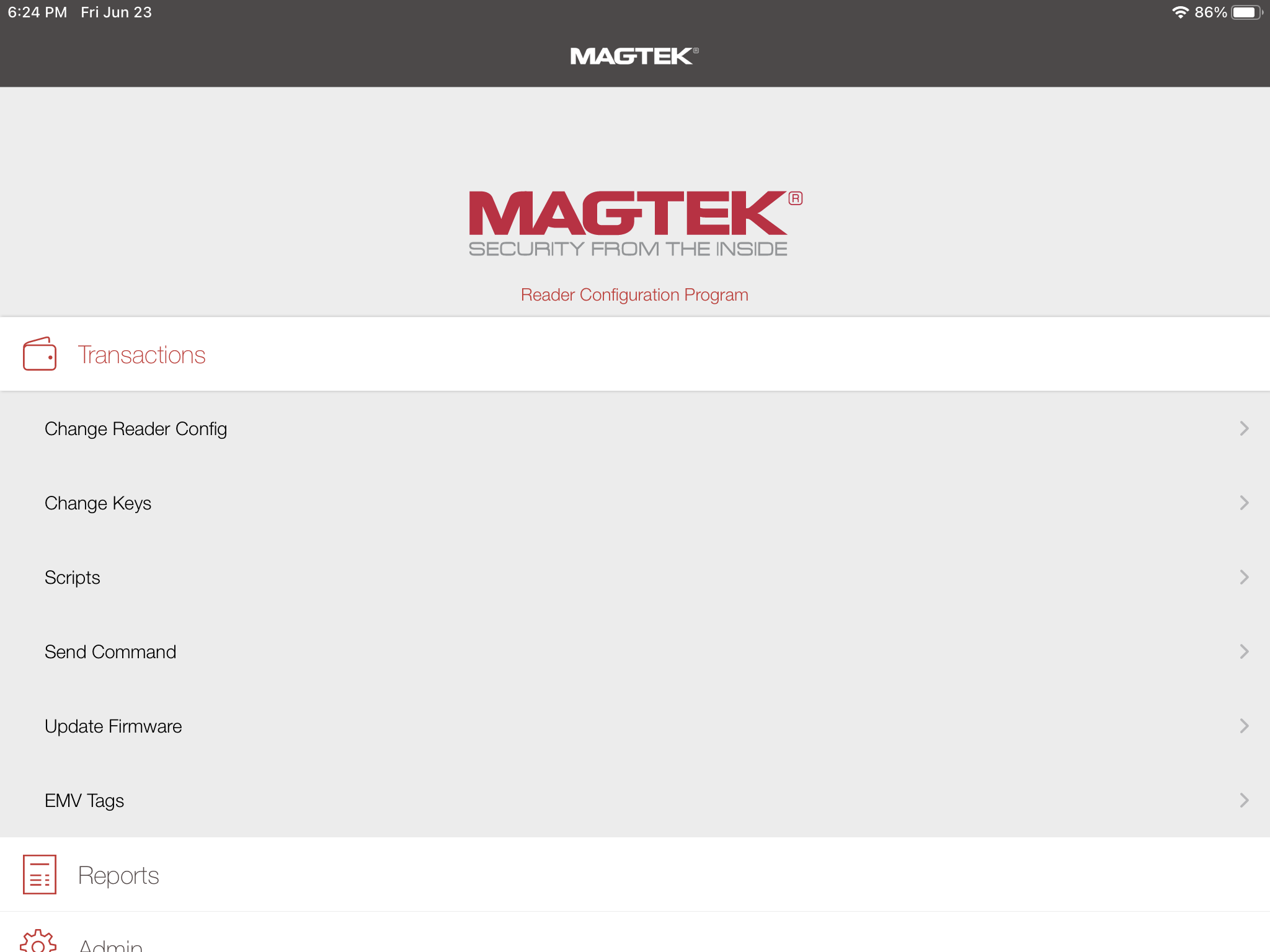

From the left menu, Select Transactions Select EMV Tags

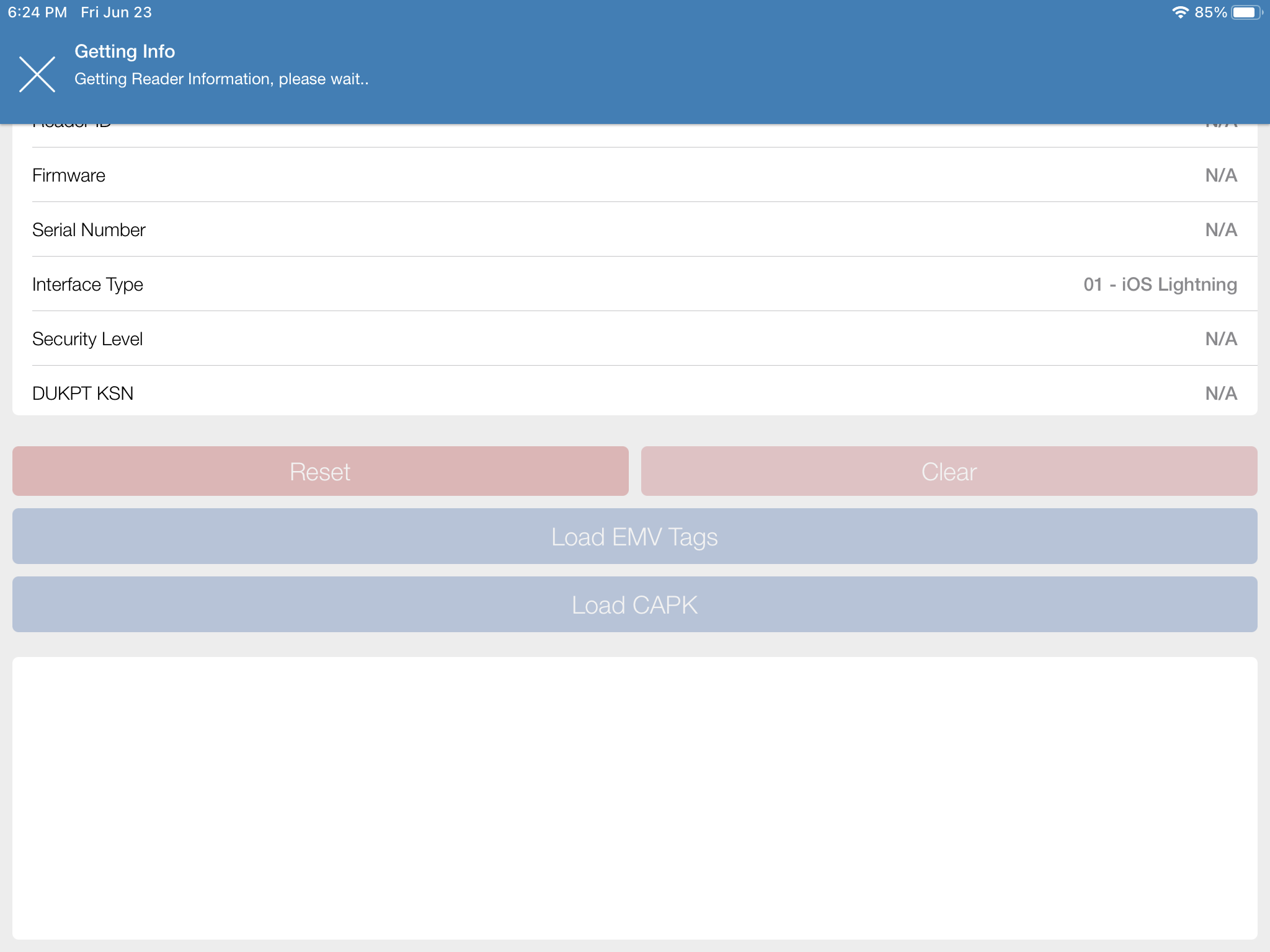

Magtek Configuration App will load current Reader Information
Select Load CAPK

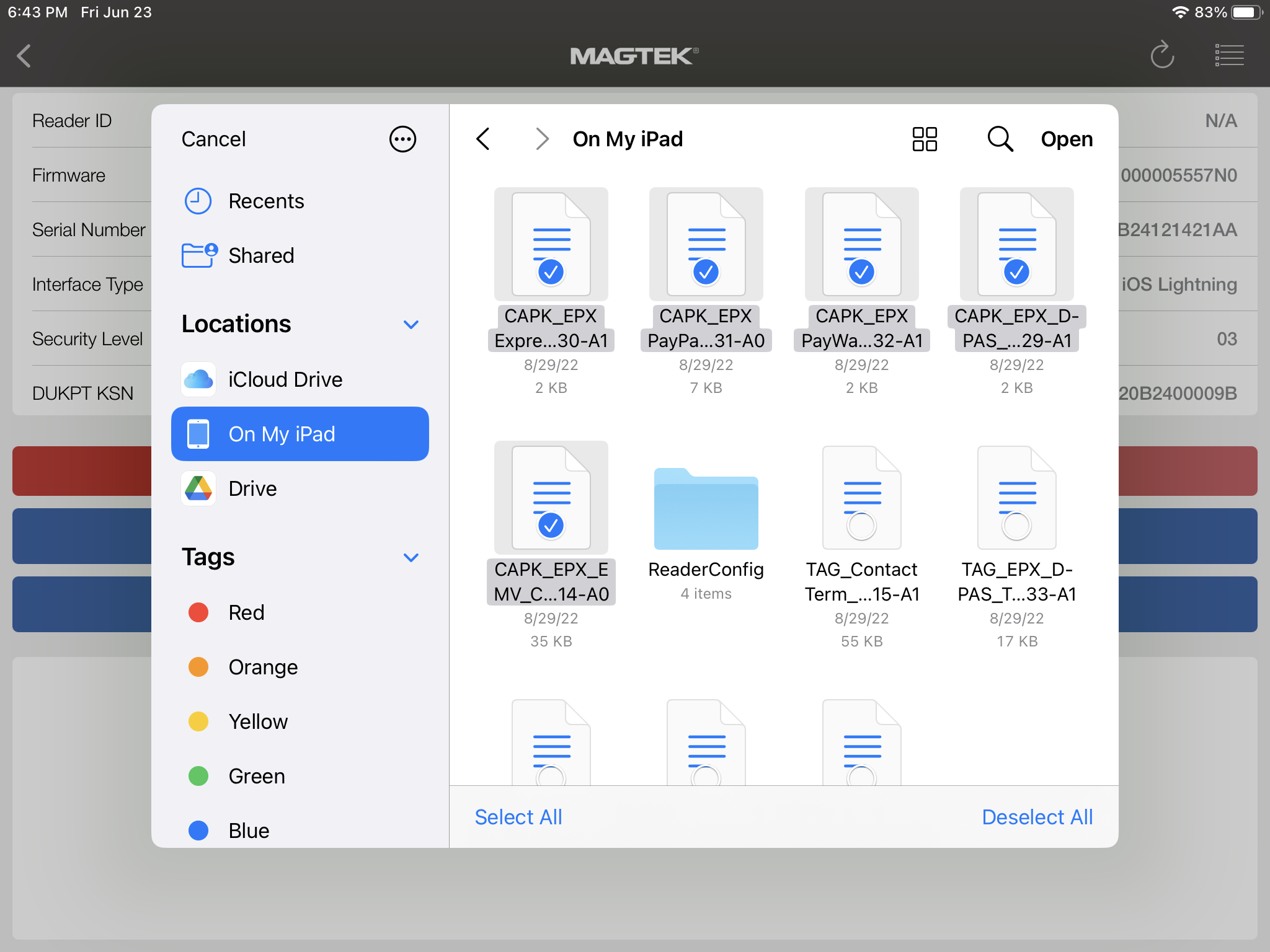

Select all the CAPK files for the Card Reader Select Open

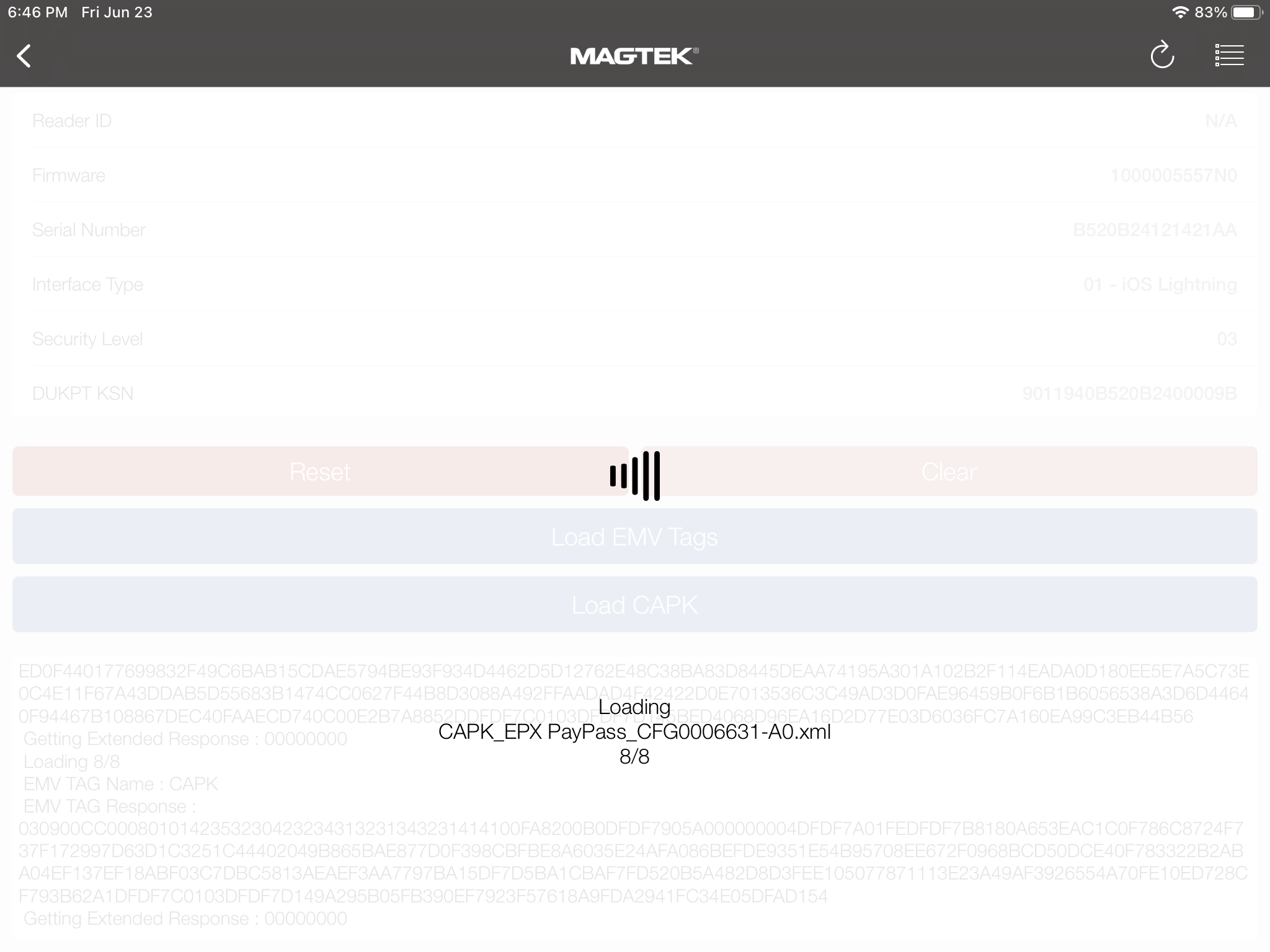

Magtek Configuration App will have a dialogue box showing progress Wait until it is complete
Once complete, select Load EMV Tags

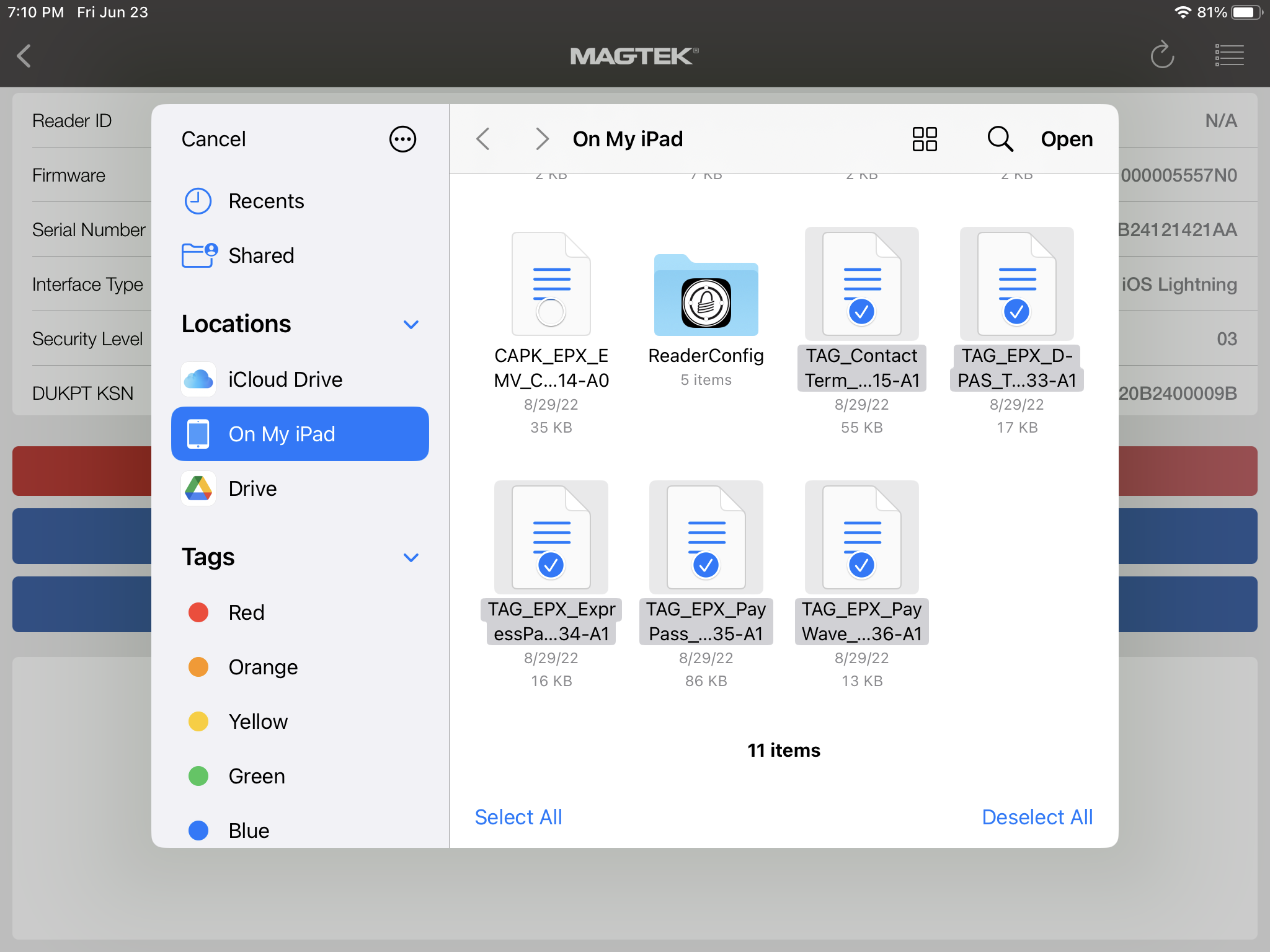

Select all the TAG files for the Card Reader Select Open

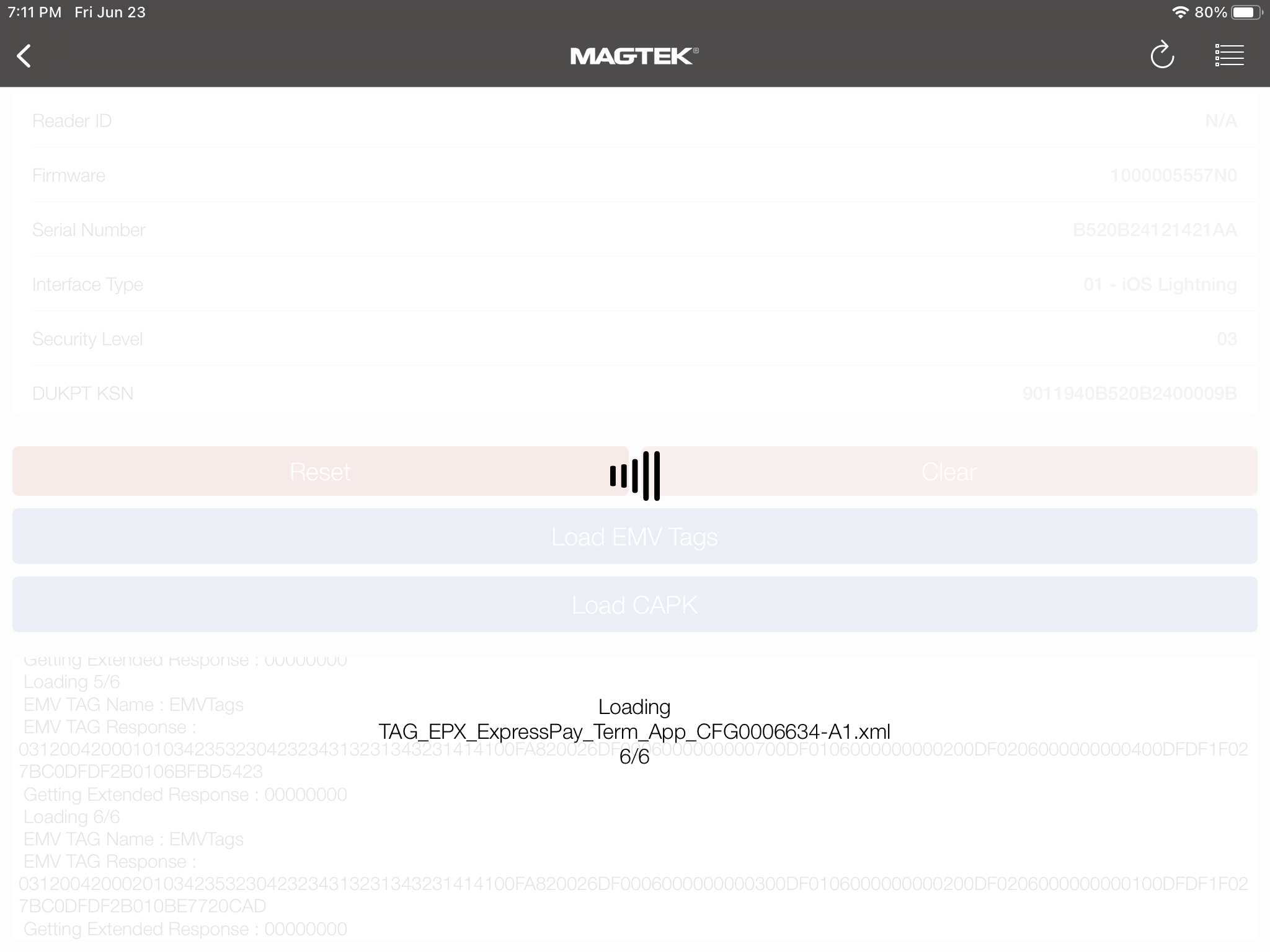

Magtek Configuration App will have a dialogue box showing progress Wait until it is complete You are done!
