Use the links below to jump to specific areas, or read from top to bottom and use the links within each section to navigate between areas:

• Getting Started
• About The Firmware
• Download Firmware
• Install Firmware
• Update Reader Configuration: Turn off Transaction Sounds

Getting Started (return to top)

1. Download CardReader Firmware provided below
2. Confirm Magtek Configuration Application is installed on target iPad
   1. If not, you can download the application for free using the Apple App Store
3. Confirm CardReader and iPad have proper charge
   1. For best results, ensure Reader and iPad are connected to power
4. Confirm CardReader is Connected to iPad

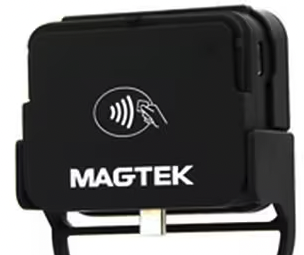

5. Confirm the connection type of Target CardReader and iPad (Pictured below)

Lightning

USB-C

About the Firmware (return to top)

There are two different firmwares based on the port the iPad and CardReader share: Lightning and USB-C. Coordinate with either your SALIDO Account Manager or SALIDO Support to request the firmware for your devices.

This Firmware release allows merchants to toggle on or off the associated beep when handling a card transaction. Please note that this is a per reader setting.

The latest Magtek Firmware as of October 13th, 2023 are available to download below:

1. iDynamo 6 Lightning Firmware:10000557-P0
2. iDynamo 6 USB-C Firmware: 100008165-J0

Download Reader Configuration Login Information: Note this information is only required to update the Reader Configuration and disable the Sound Notification for Card Transactions. More information Here.

Download Firmware (return to top)

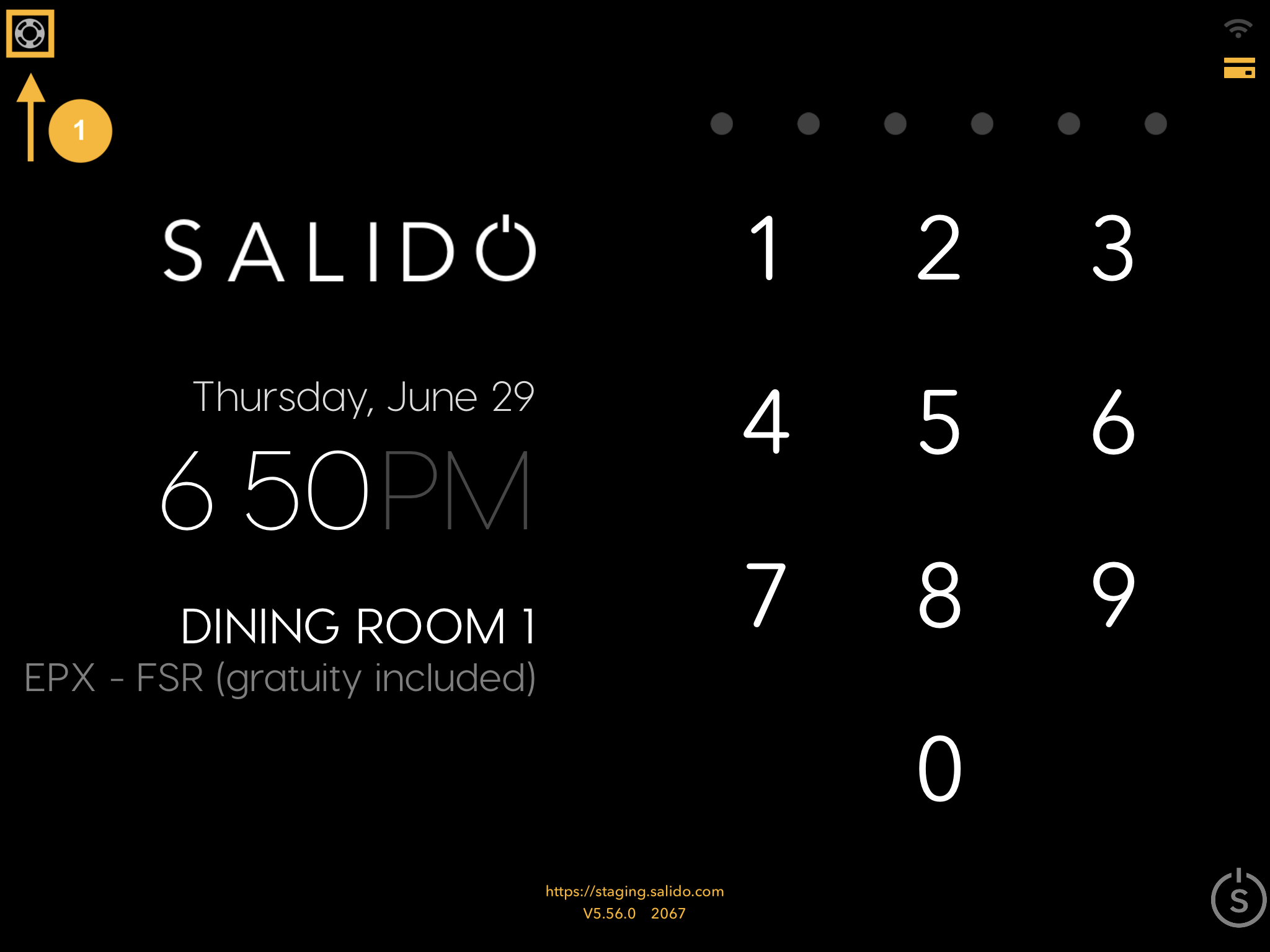

On your SALIDO login screen select the life preserver icon

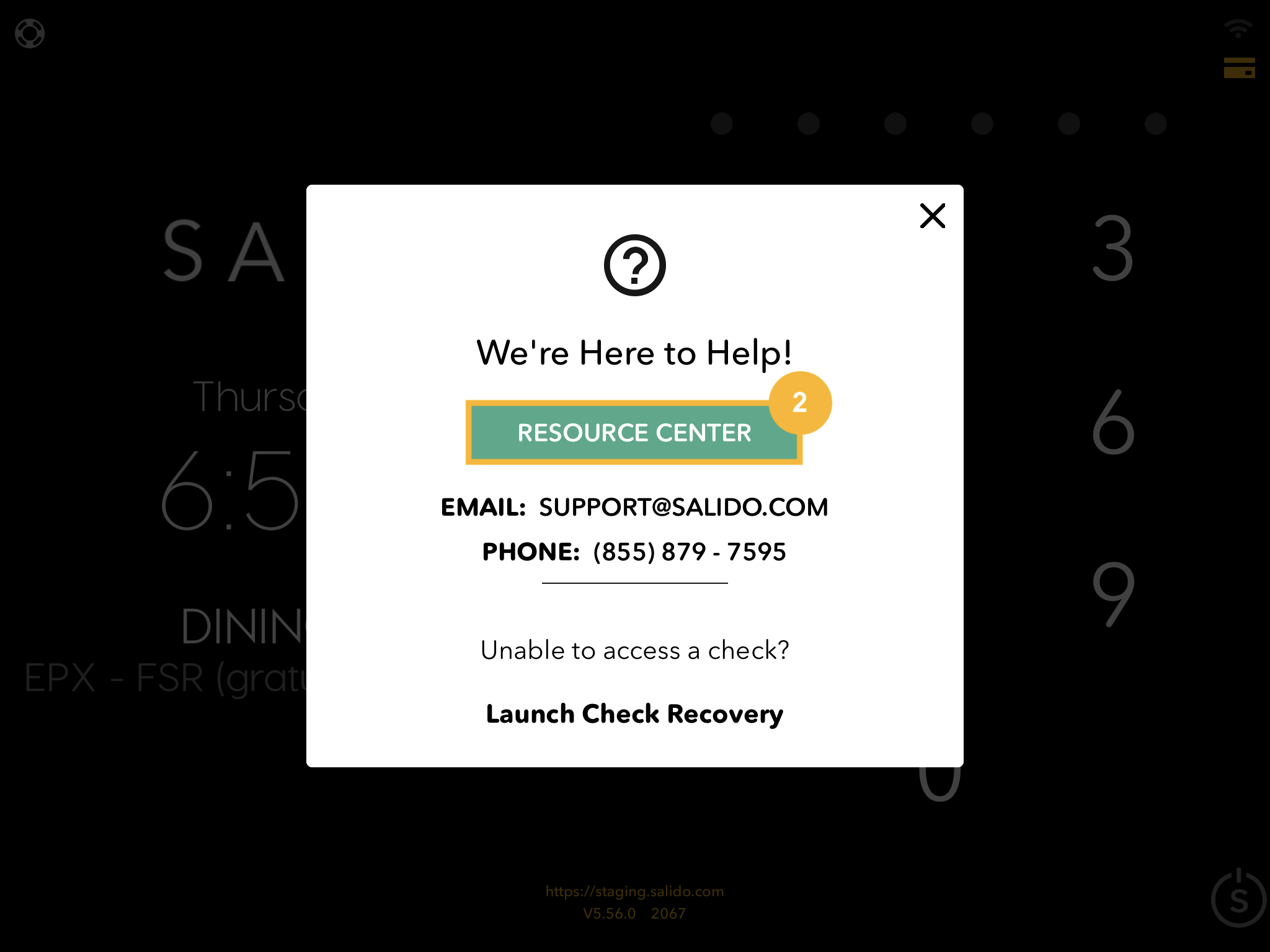

Select RESOURCE CENTER

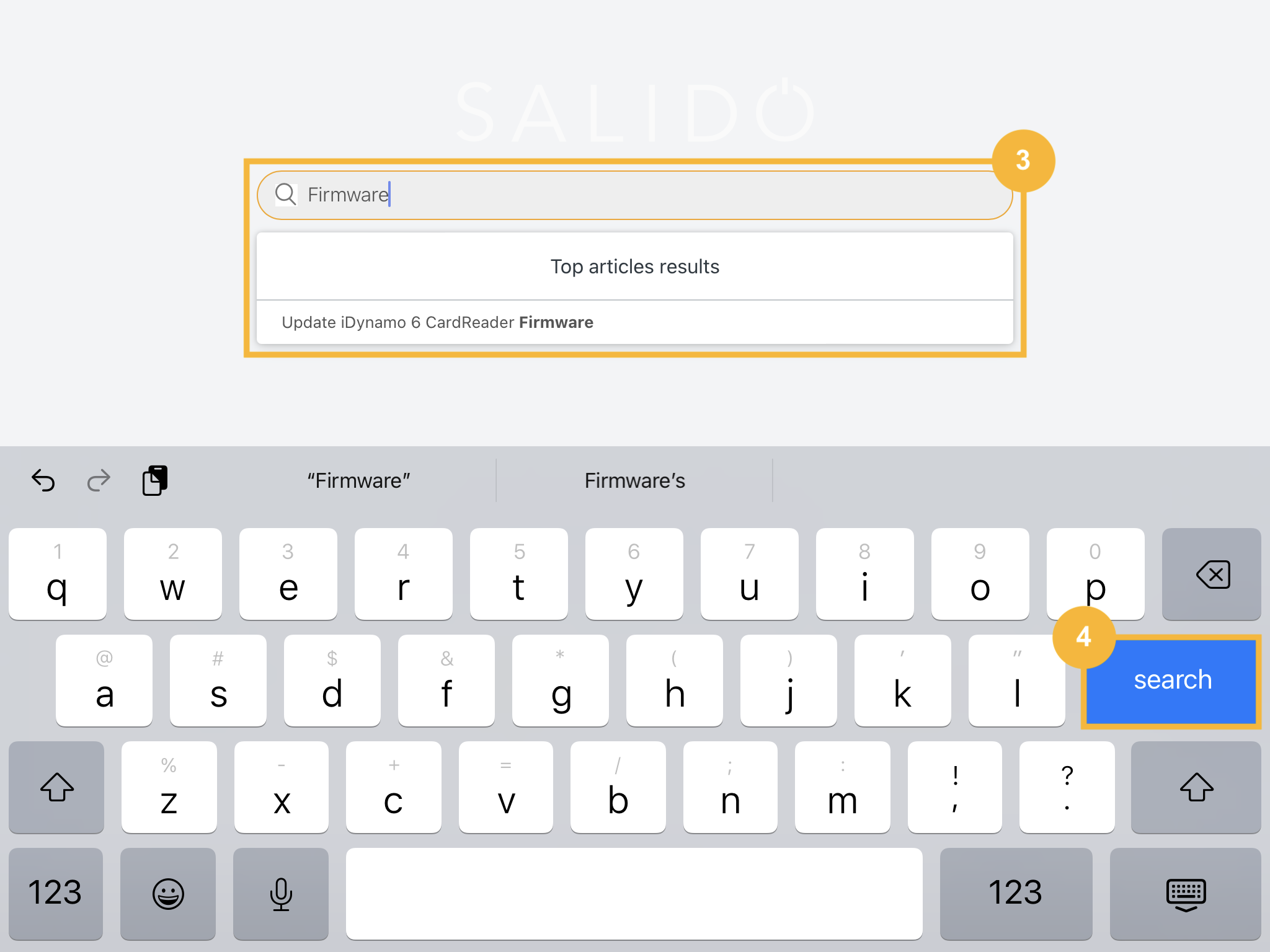

In the search bar, search for the Firmware article Select Search
Long press on the Firmware article

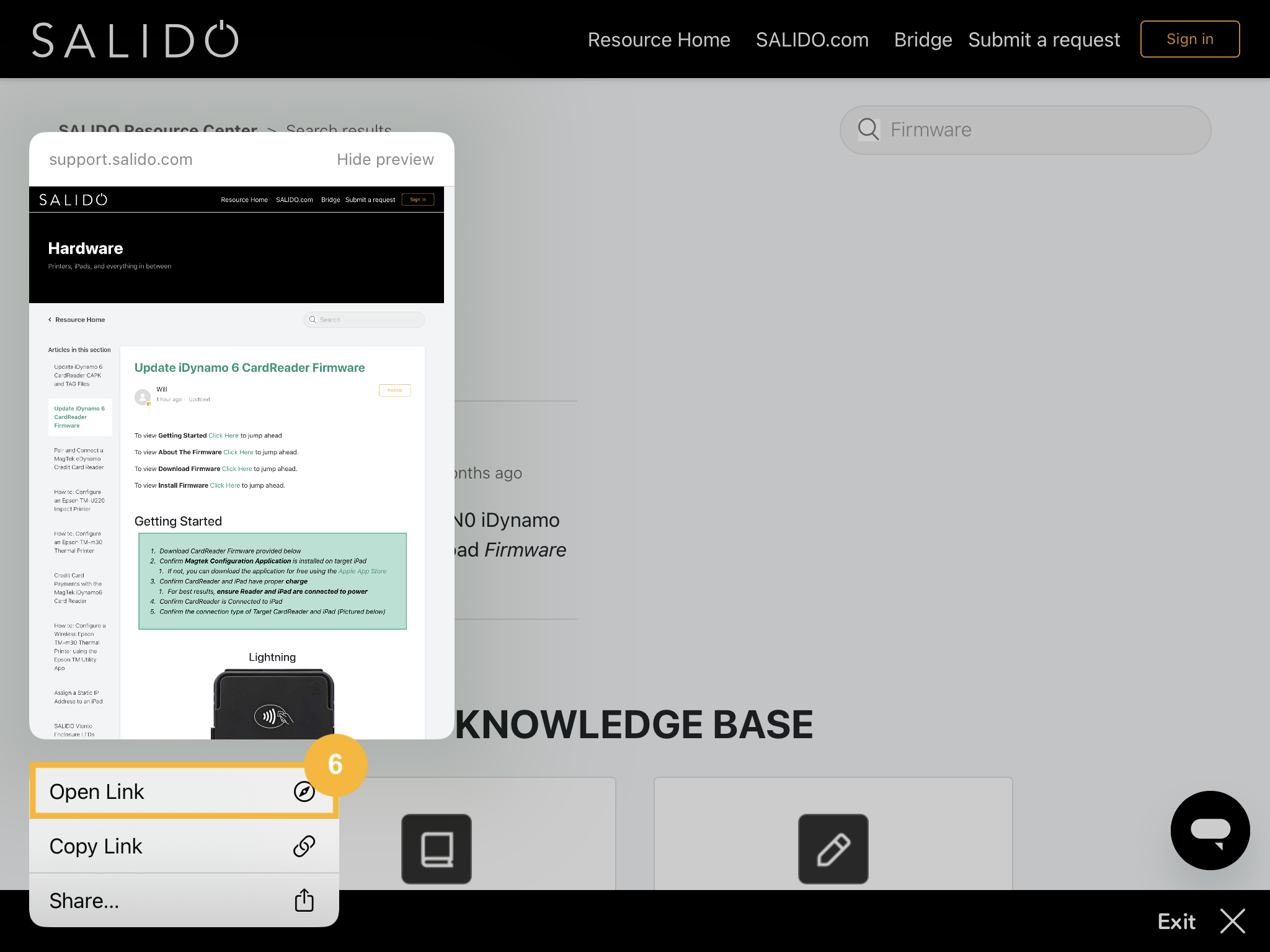

Select Open Link Ensure Safari is set as your default browser
Select the firmware that corresponds with your iDynamo6 card reader

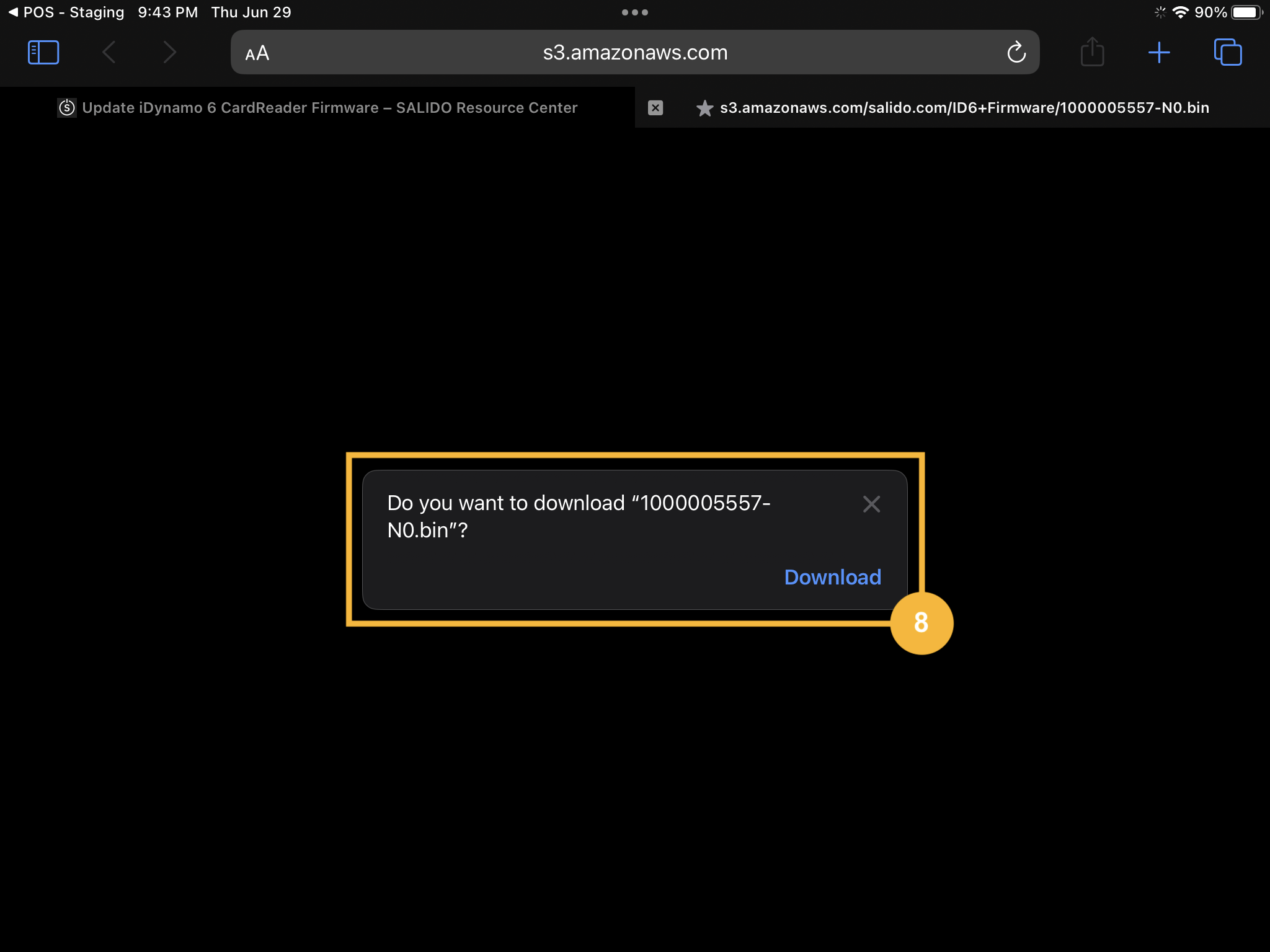

Select Download

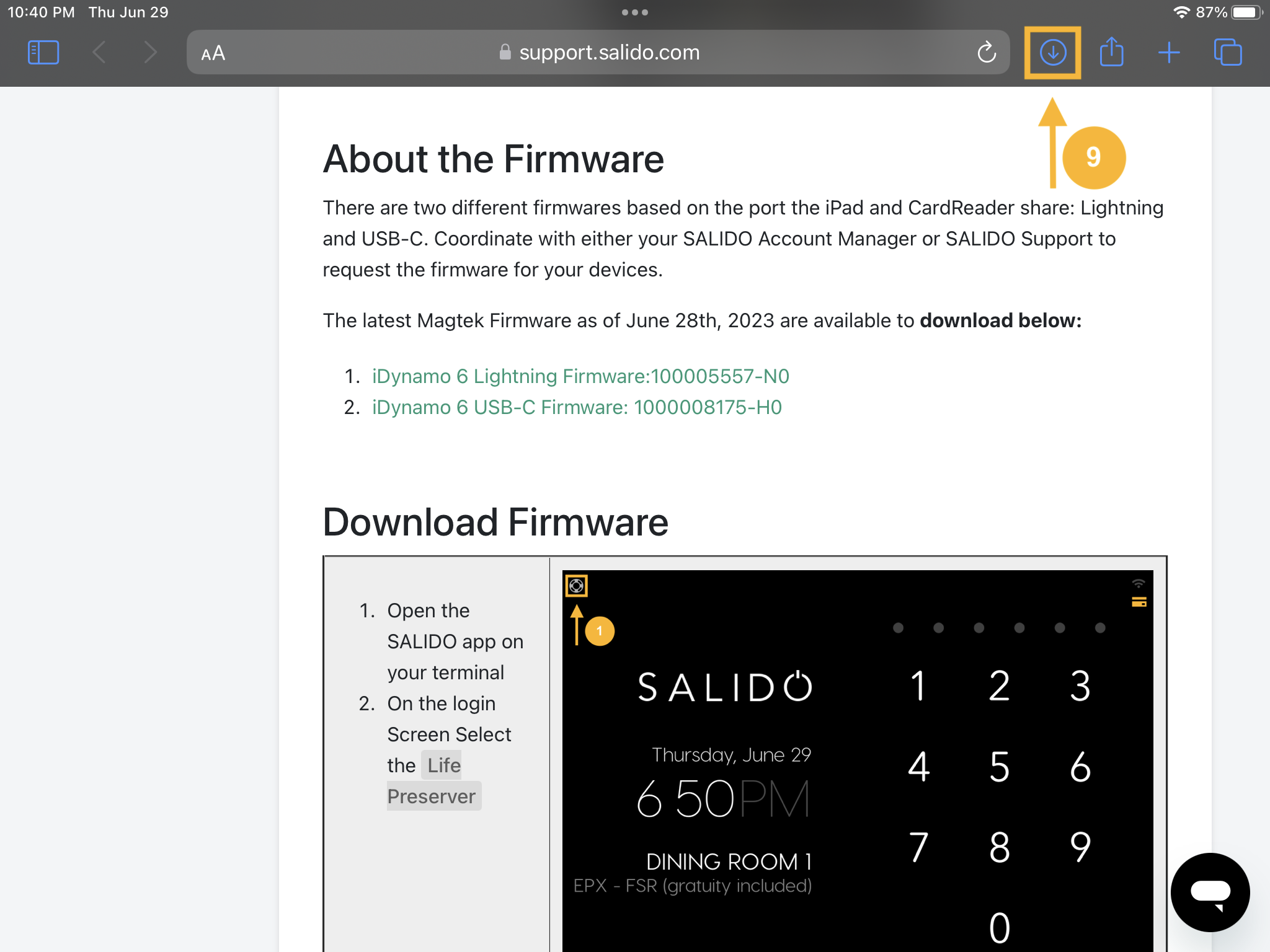

Select the blue downward-facing arrow
Select the file you just downloaded

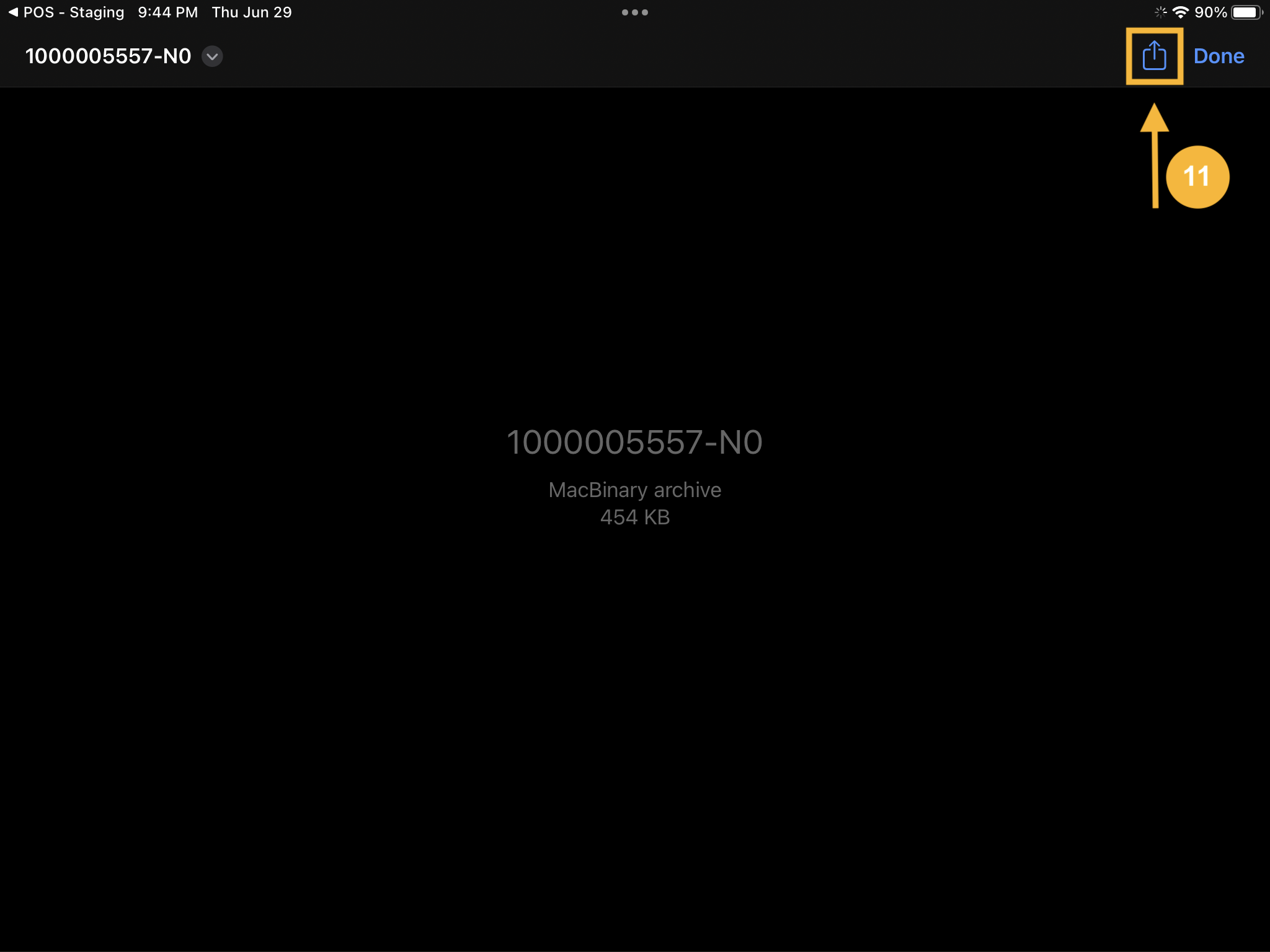

Select the blue upward-facing arrow

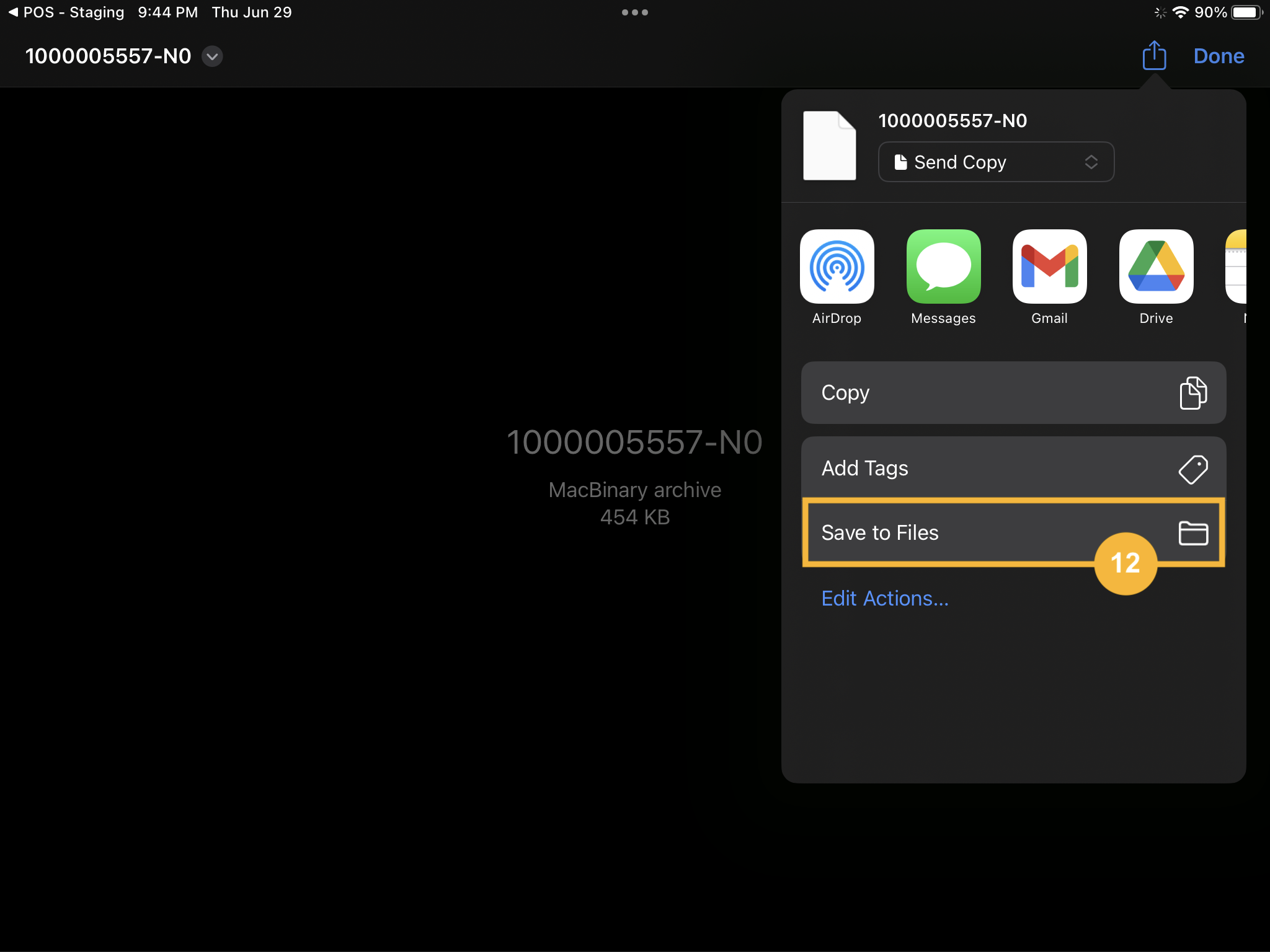

Select Save to Files

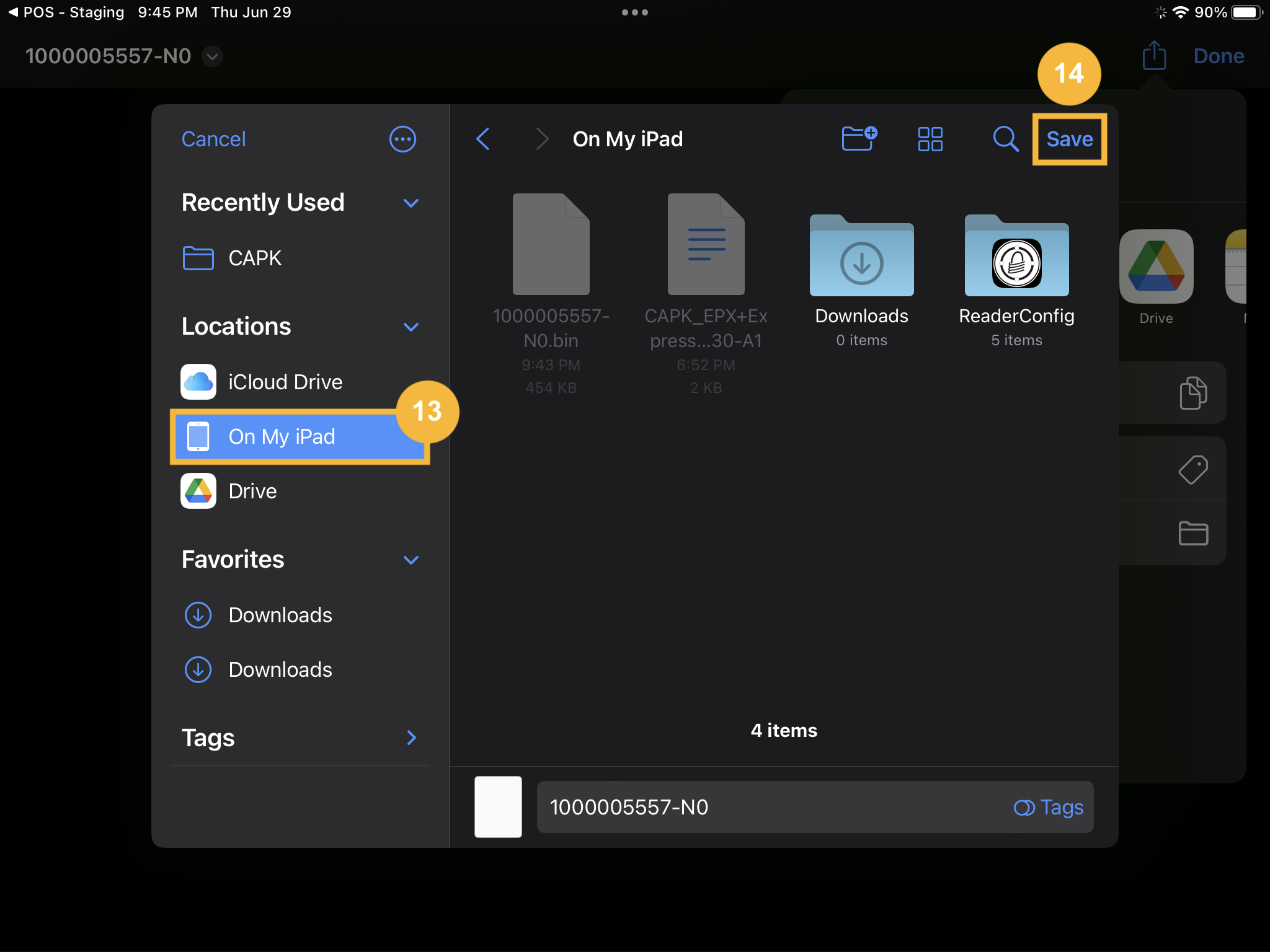

Select On My iPad Select Save

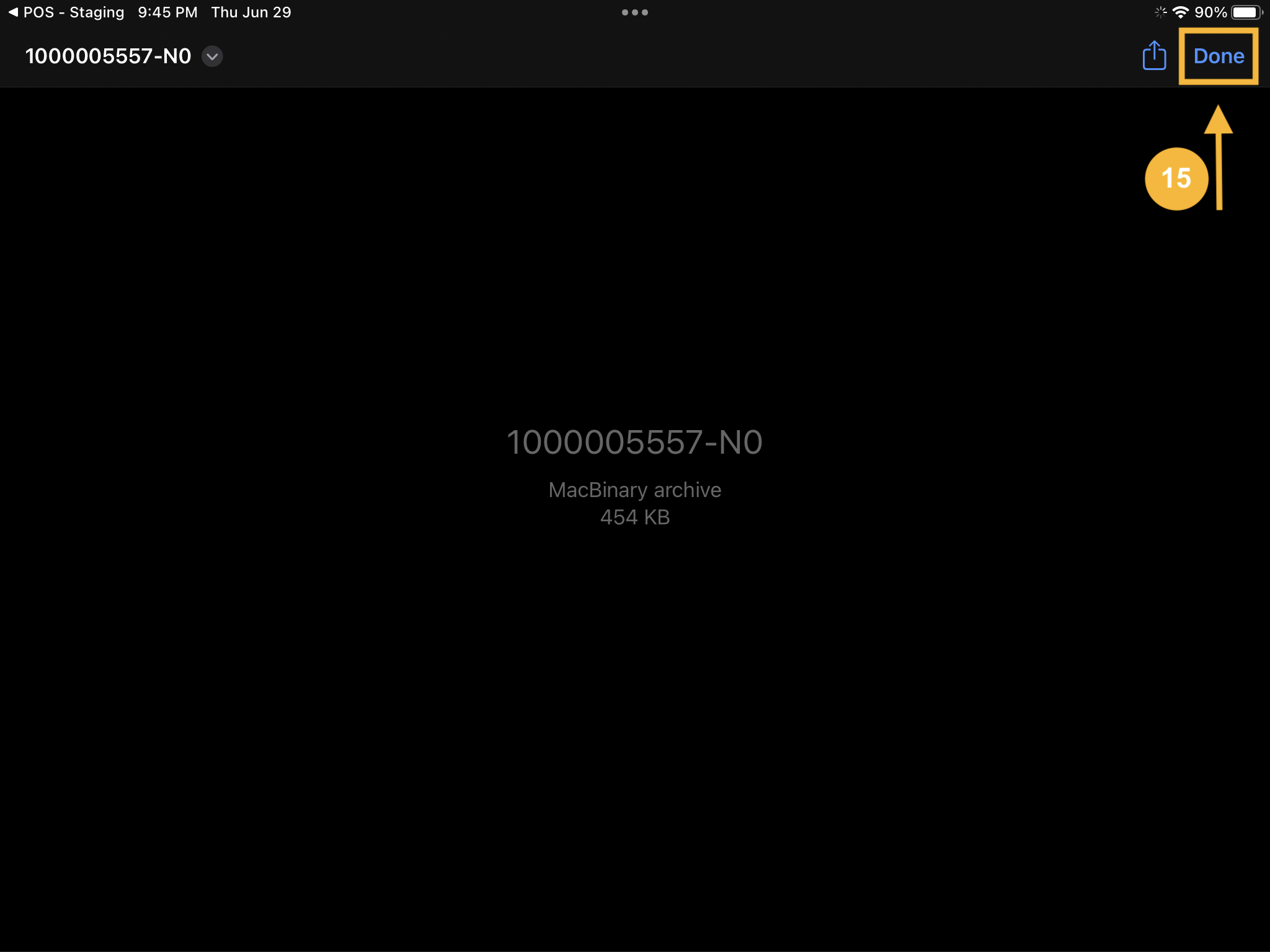

Select Done

Install Firmware (return to top)

Video Walkthrough

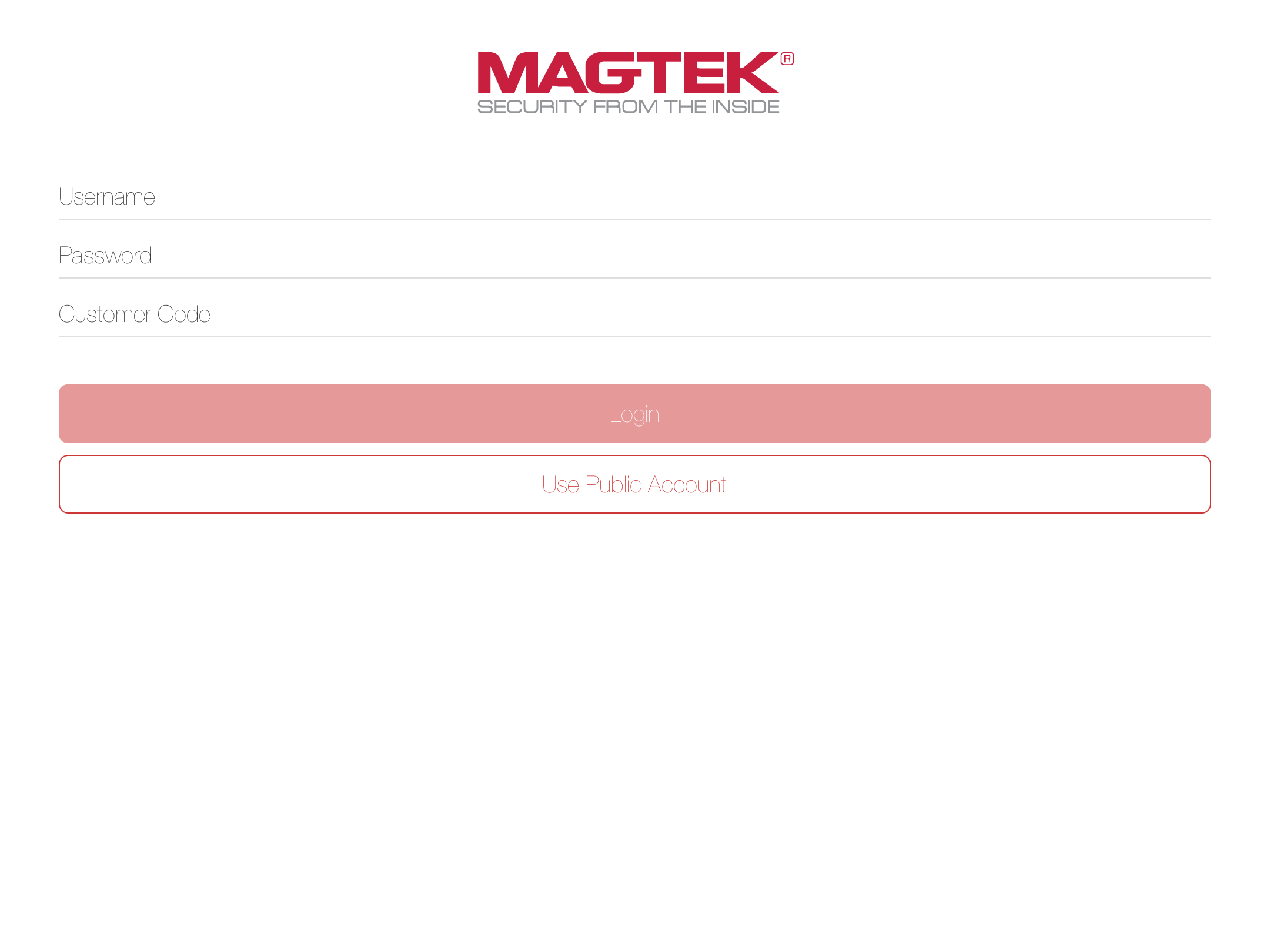

Open Magtek Configuration Application On the login Screen Select Use Public Account

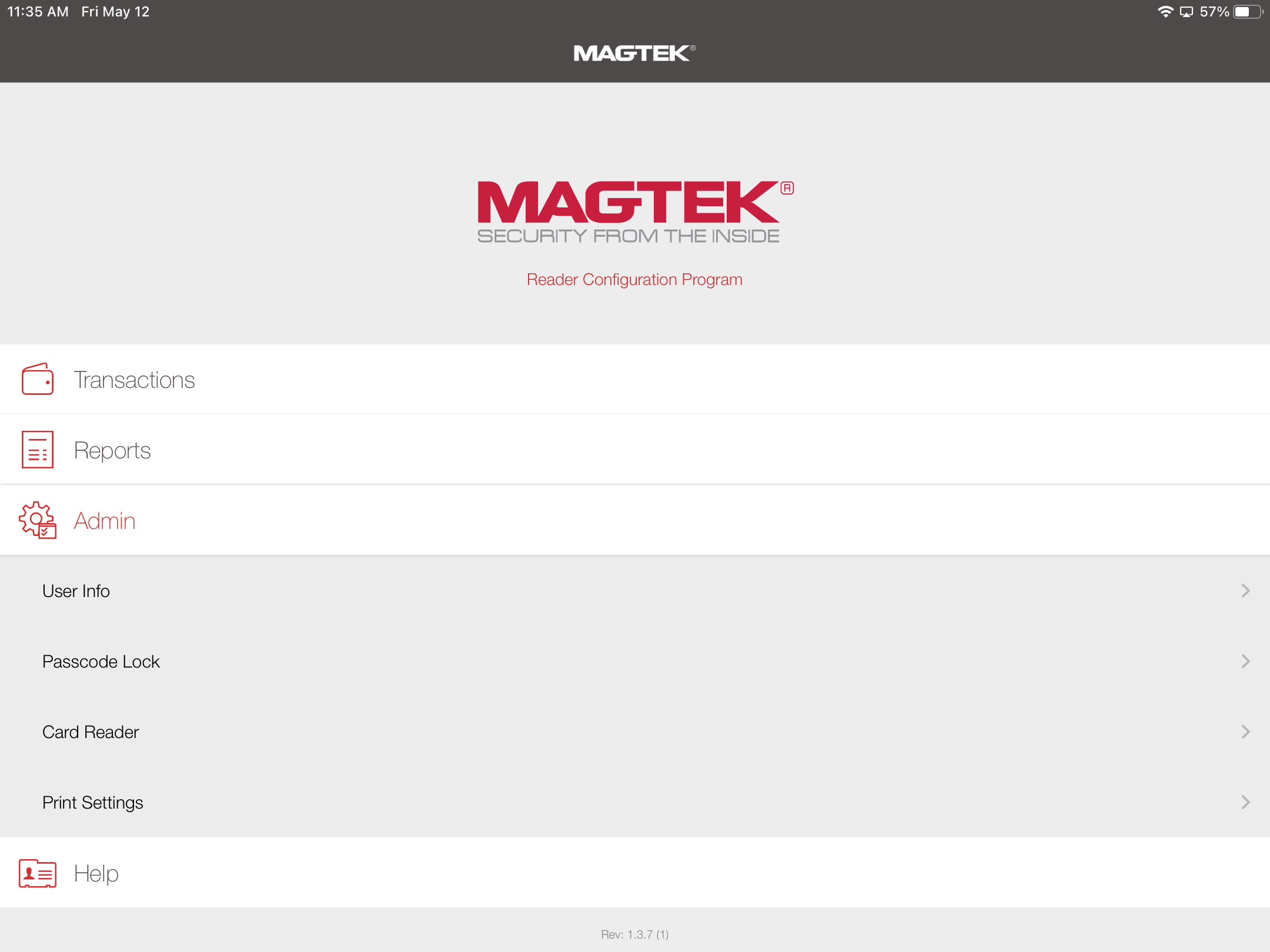

From the left menu, Select Admin Select Card Reader

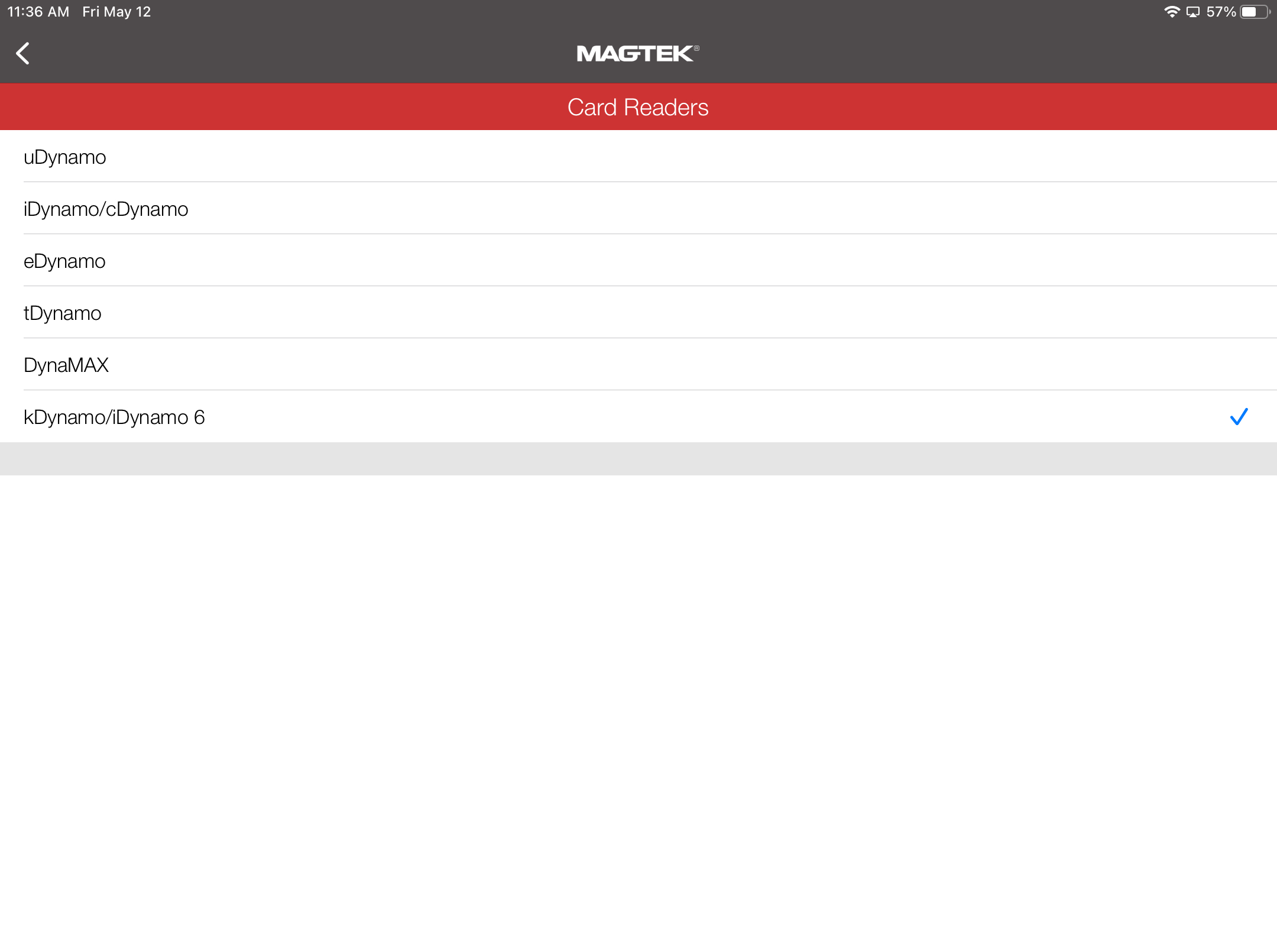

Select kDynamo/iDynamo 6

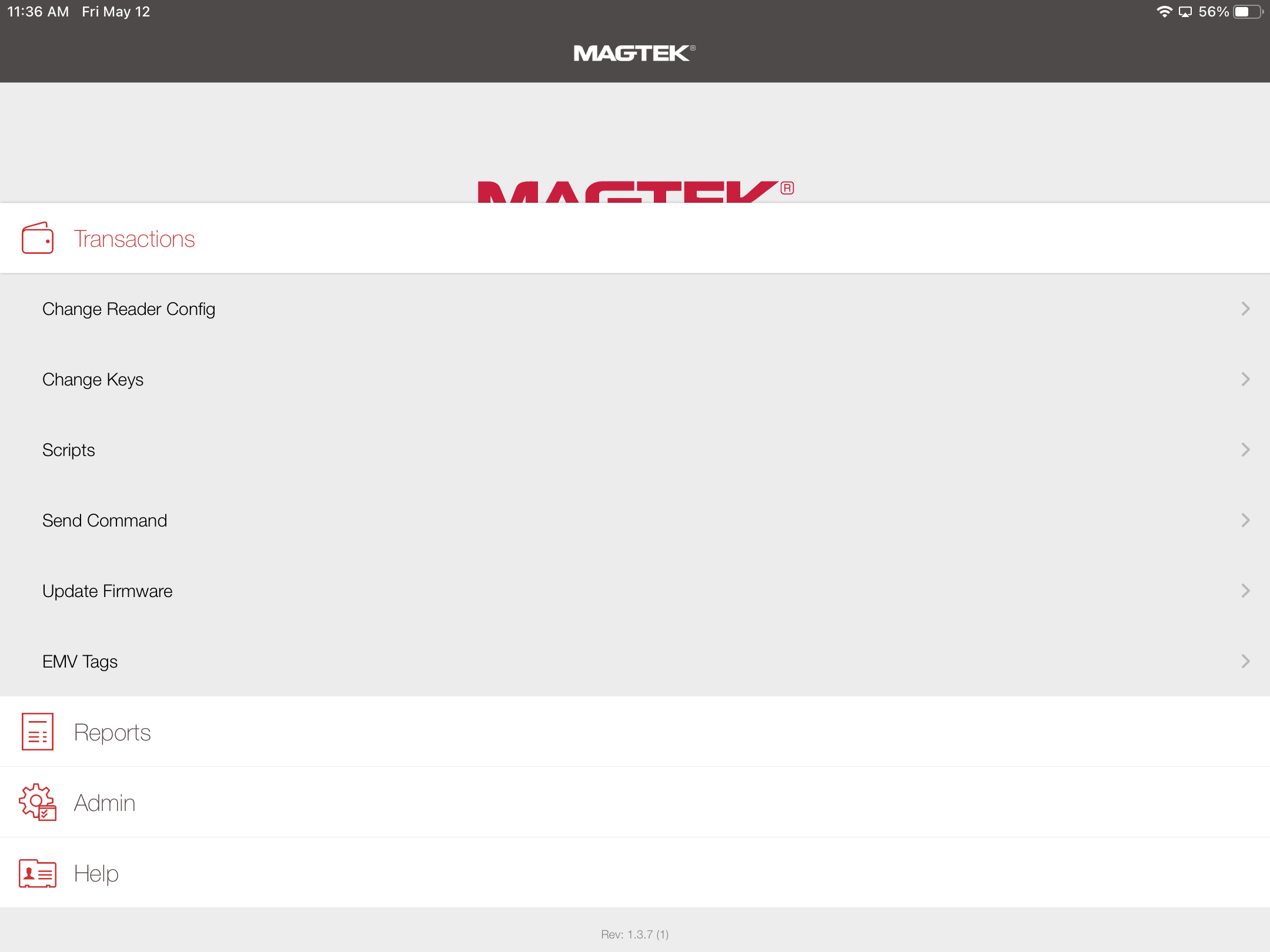

From the left menu, Select Transactions Select Update Firmware

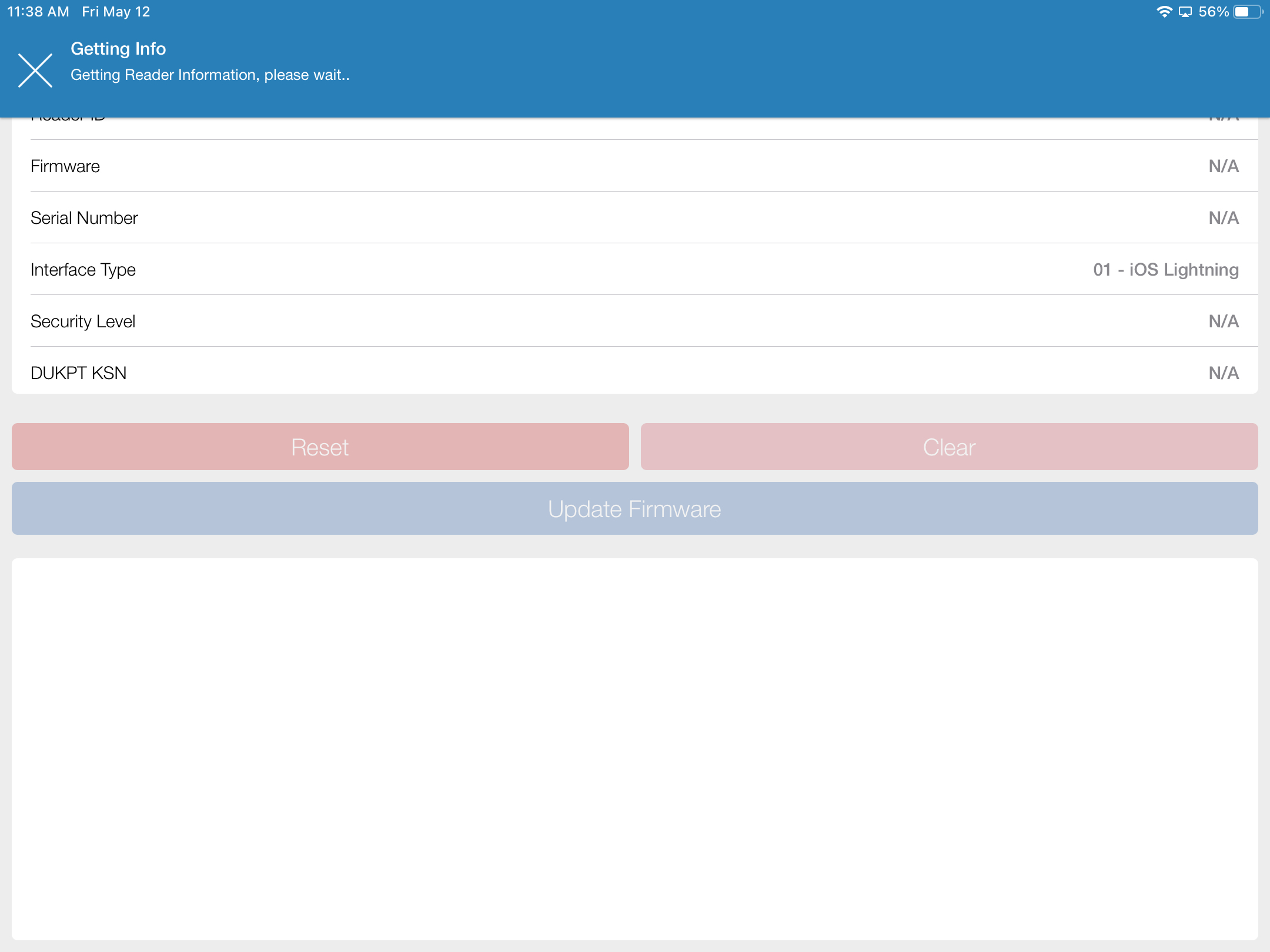

Magtek Configuration App will load current Reader Information

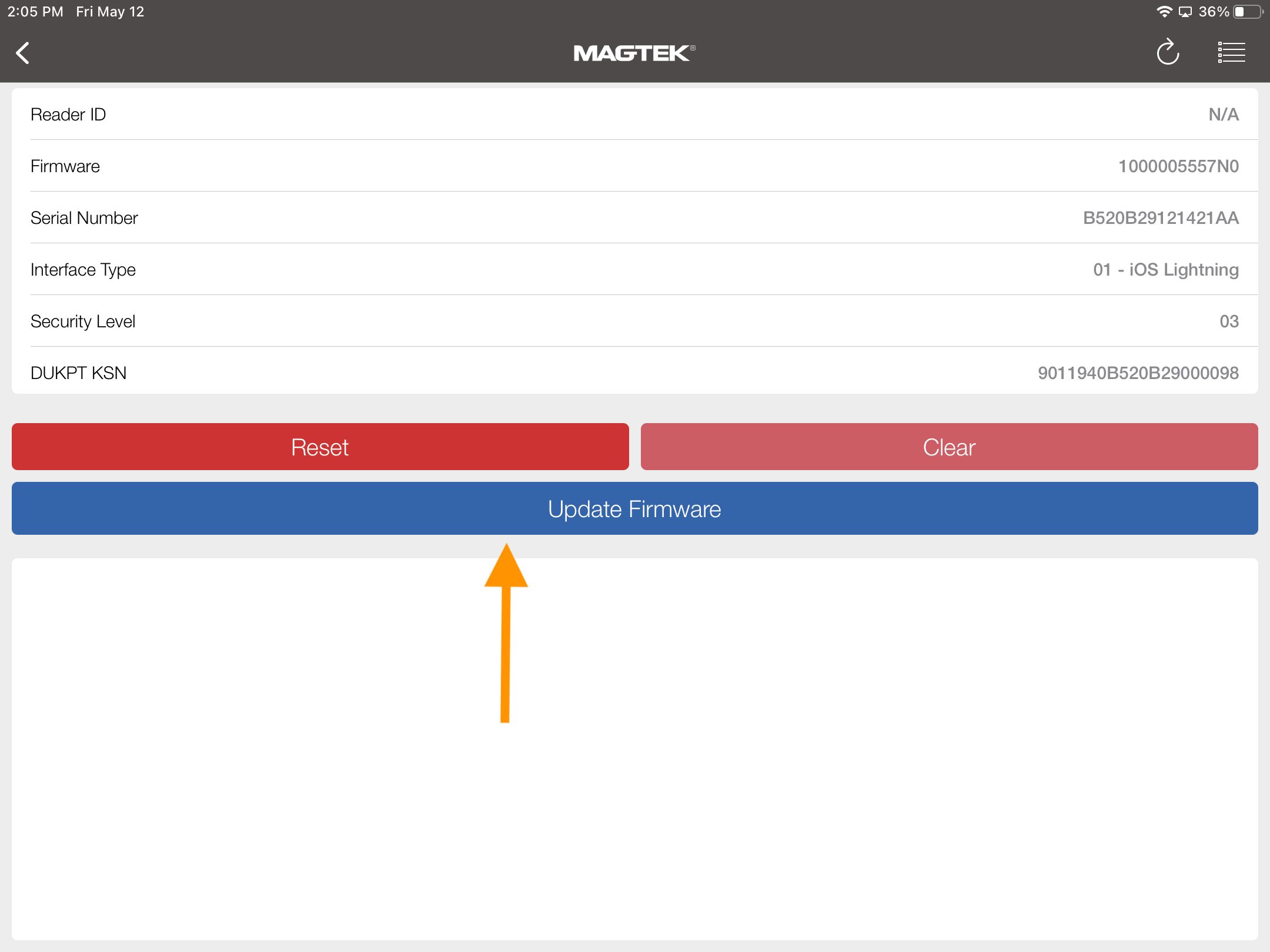

Select Update Firmware

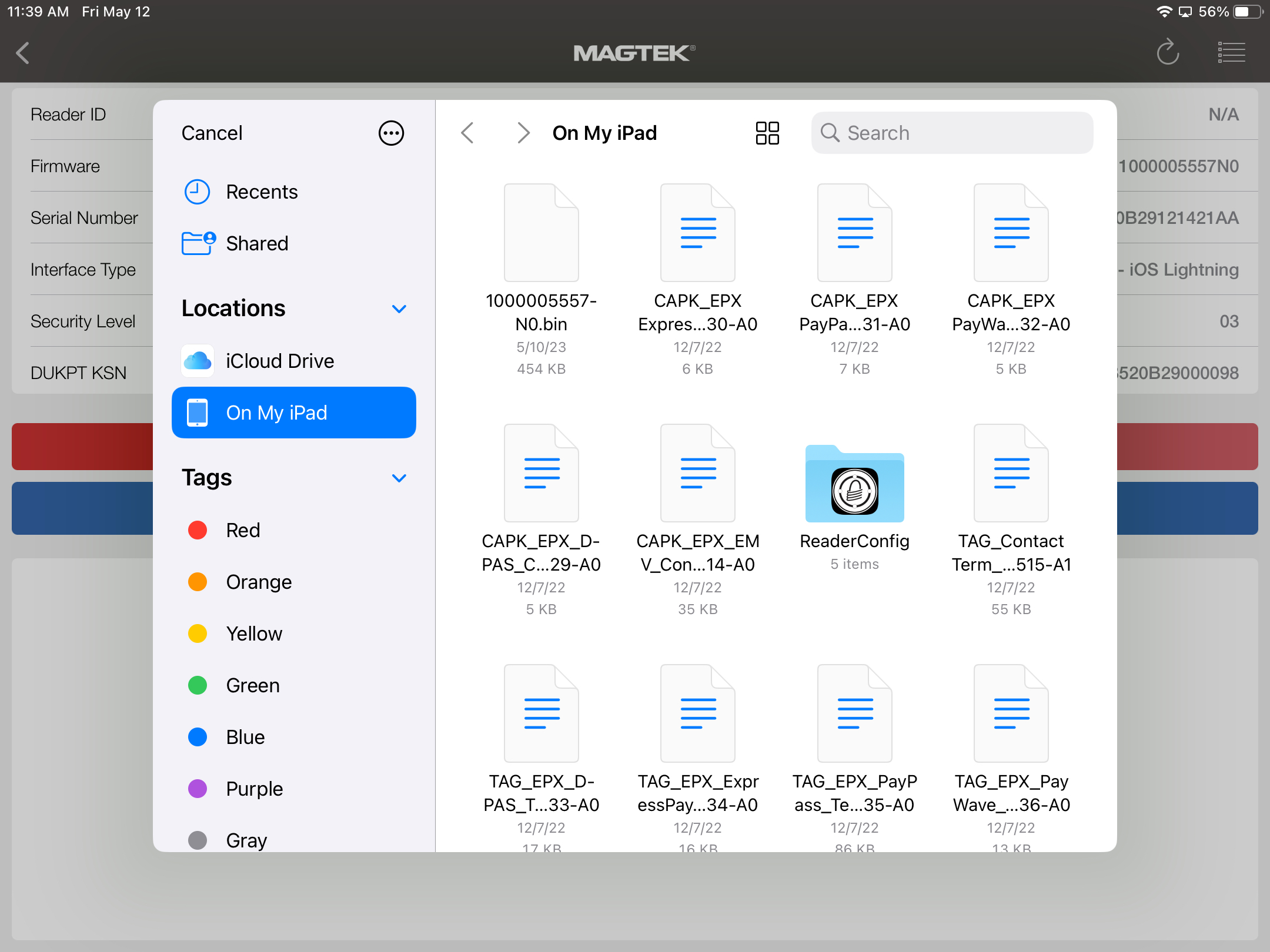

Select the appropriate Firmware file for the CardReader Lightning: N0 USB-C: H0

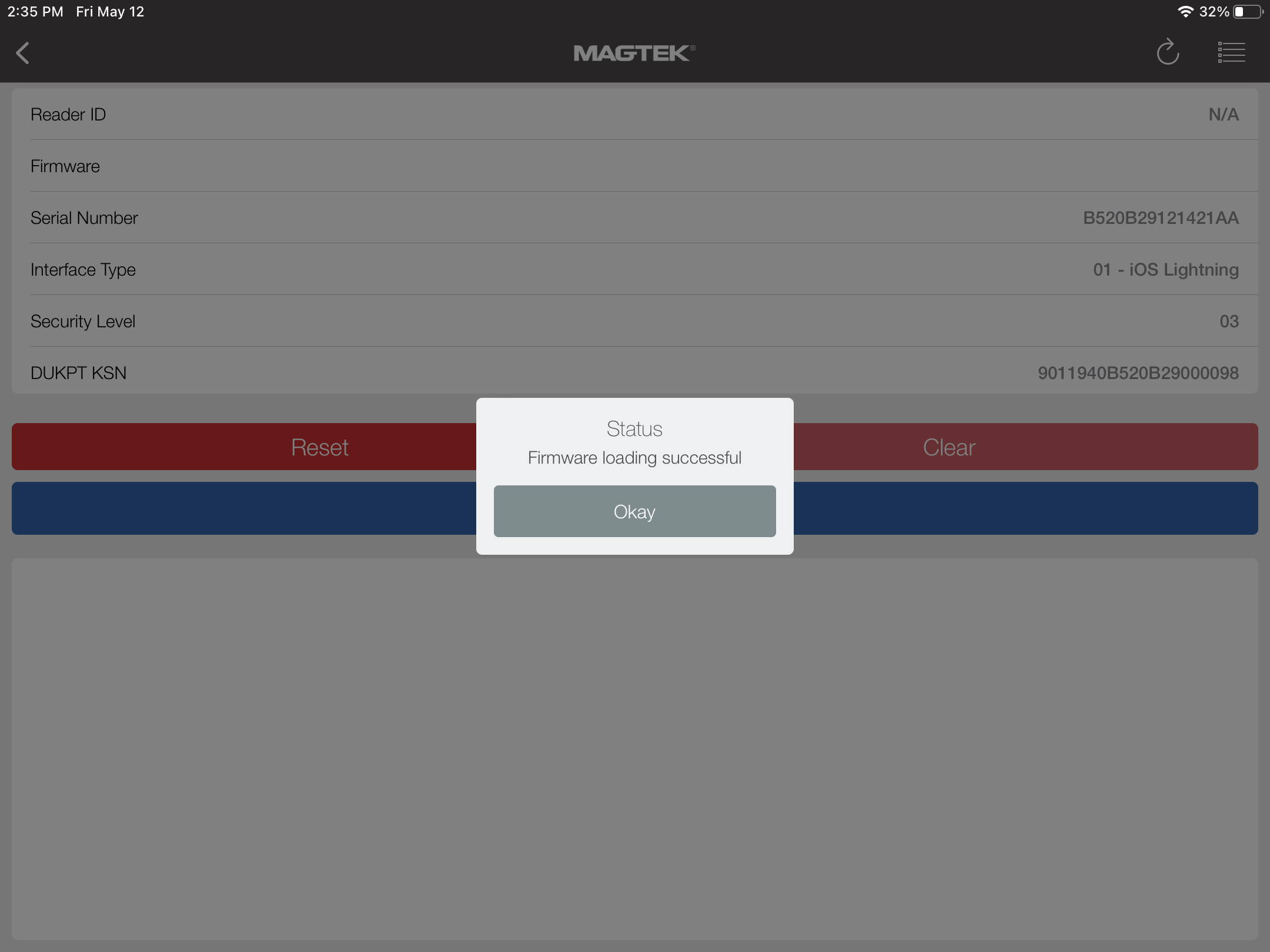

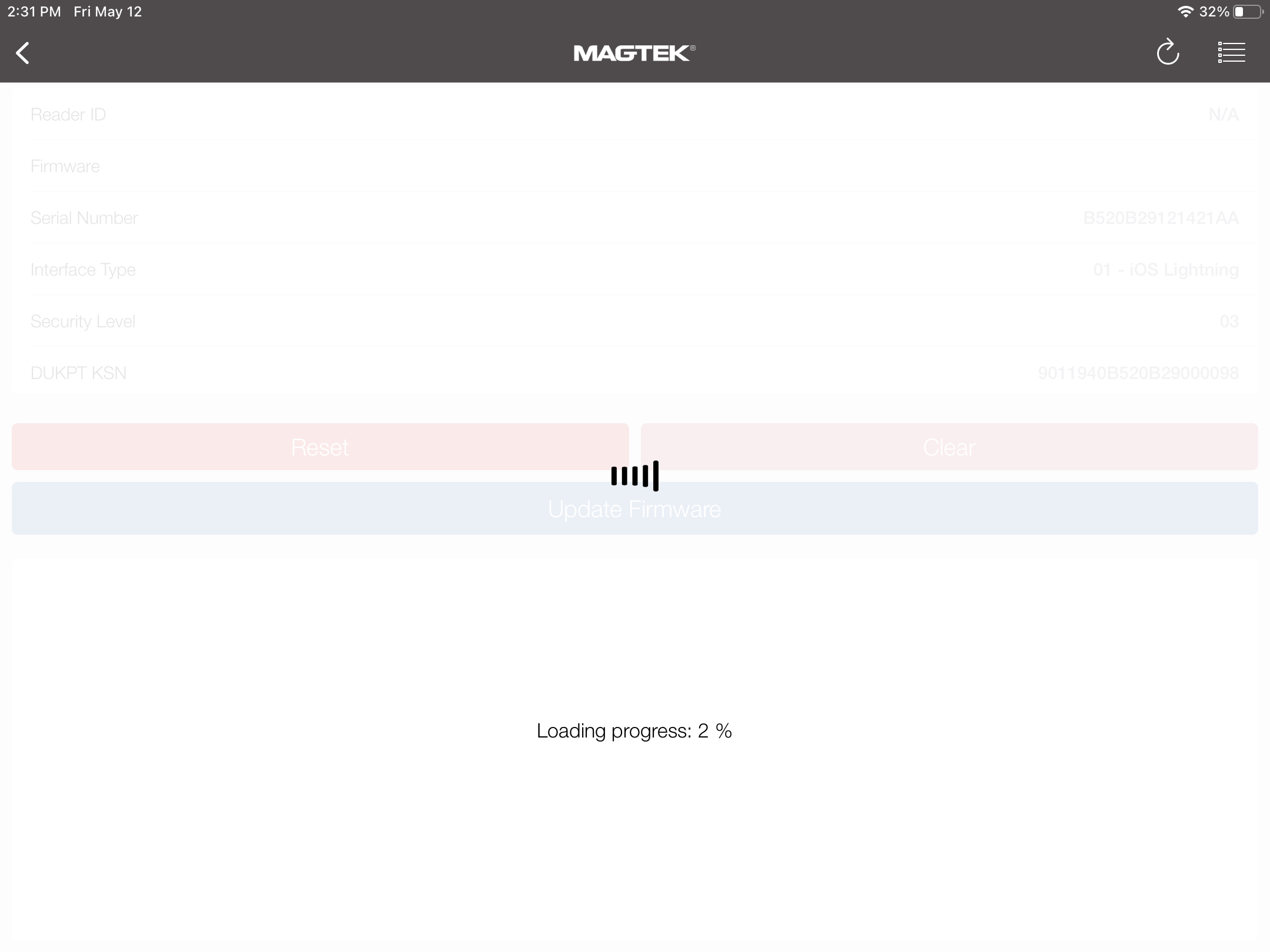

Magtek Configuration App will have a dialogue box showing progress Wait until it is complete You are done!

Update Reader Configuration: Turn off Transaction Sounds

Required Conditions

1. MagTek iDynamo6 CardReader must be on Lightning Firmware ending in P0 or USB-C Firmware ending in J0.
2. You cannot use a Public Account to update the Reader Configuration, and must login with a user. SALIDO will provide that user login for you use.

Update Reader Config

1. Download this file to your SALIDO iPad containing the Magtek Login Information.
2. Launch Magtek Reader Configuration App
3. Copy and Paste Login Information from the downloaded file:
   1. Username
   2. Password
   3. Customer Code
4. Login
5. Navigate to Admin
6. Select Card Reader
7. Select kDynamo/iDynamo 6
8. Navigate to Transactions
9. Select Change Reader Config

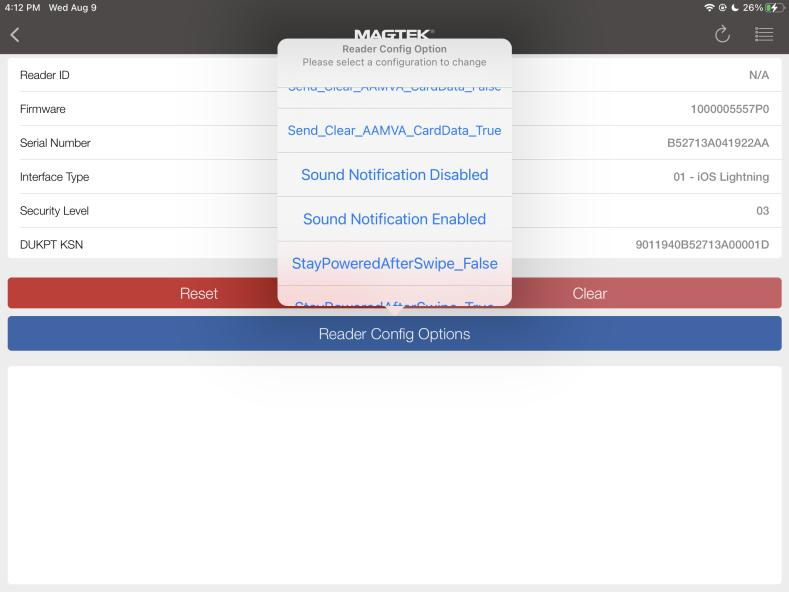

10. Scroll through Configuration Options and Select "Sound Notification Disabled"
11. See Image Below. Once the configuration is updated, you're done!
