How to: Configure a Wireless Epson TM-m30 Thermal Printer using the Epson TM Utility App

Jeremy Swift
  • Updated
Follow

Overview

Epson TM-m30 thermal printers can be used as both Prep Printers to receive Prep Tickets and Terminal Printers for printing Guest Receipts. In this article, we will cover how to change the network configuration of these flexible printers. Please budget twenty (20) to thirty (30) minutes to complete the process from start to finish.



Having Trouble? See our Tips and Tricks or Contact SALIDO Support.



Required Materials

  1. An iPad or iPhone with the Epson TM Utility App installed

  2. A pen or paper clip

  3. An Epson TM-m30 printer that has been factory reset

  4. An IP address available for use by the printer
    NOTE: Every device on a network must have a unique IP address. When in doubt, please contact your Network Management Team with any questions.



Basic Process

  1. Factory reset the Epson TM-m30 printer

  2. Use the Epson TM Utility app to push a network configuration from an iPad to the printer



Factory Reset the Epson TM-m30 printer

It’s always best to start from a clean slate. Reset the printer to factory defaults to wipe any existing configurations.

  1. Turn the printer OFF


  1. Turn the printer upside down

  2. Remove the protective panel


  1. Locate the Network Status Button on the rear underside of the printer. It is located in a small depression next to the cash drawer port.

WiFi


  1. Turn the printer right side up

  2. Use the tip of a pen or a paperclip to depress and hold the Network Status Button

  3. Turn the printer ON while continuing to hold the Network Status Button


  1. The printer will make a mechanical noise and print an Initialization Complete receipt


  1. Wait for a second receipt to print after a few seconds with info for SimpleAP




Configure the Printer Using the Epson TM Utility App

  1. Open the iPadOS Settings app
  1. Select Wi-Fi
  1. Select EPSON_Printer from Other Networks
  1. Enter the Password "12345678" and Select Join
    NOTE: If receiving an Incorrect Password error, return to the Factory Reset instructions above, then begin again at Step 1
    NOTE: Some Printers may require the Printer Serial Number as the password
  1. Wait for a blue checkmark to appear beside the EPSON_Printer network name
  1. Download and Open the Epson TM Utility app
  1. Select Wi-Fi Setup Wizard
  1. Select TM-m30 as the Printer model
  2. Select Next
  1. If prompted to Allow "TM Utility" to use your Location?, select Allow While Using App

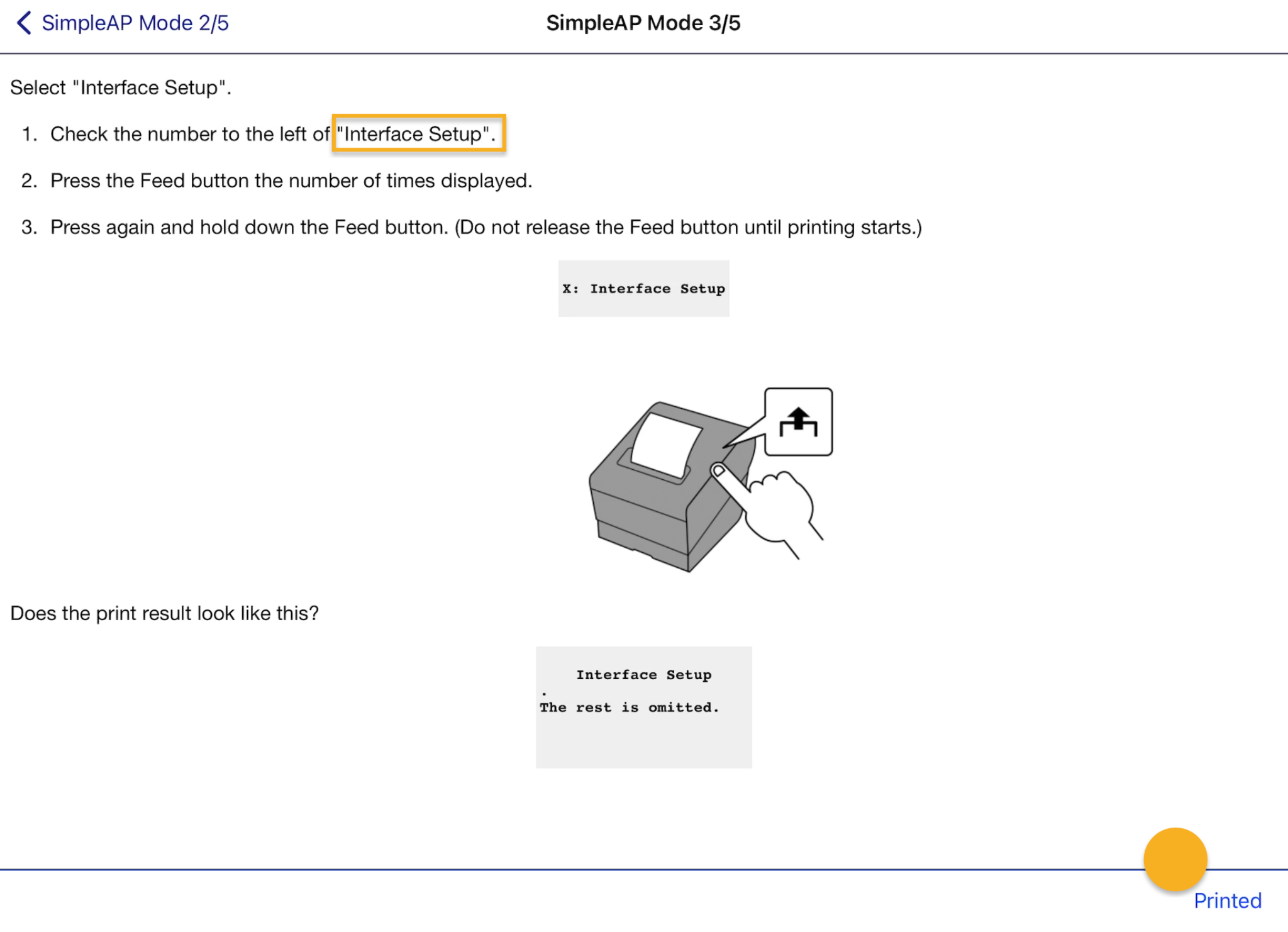

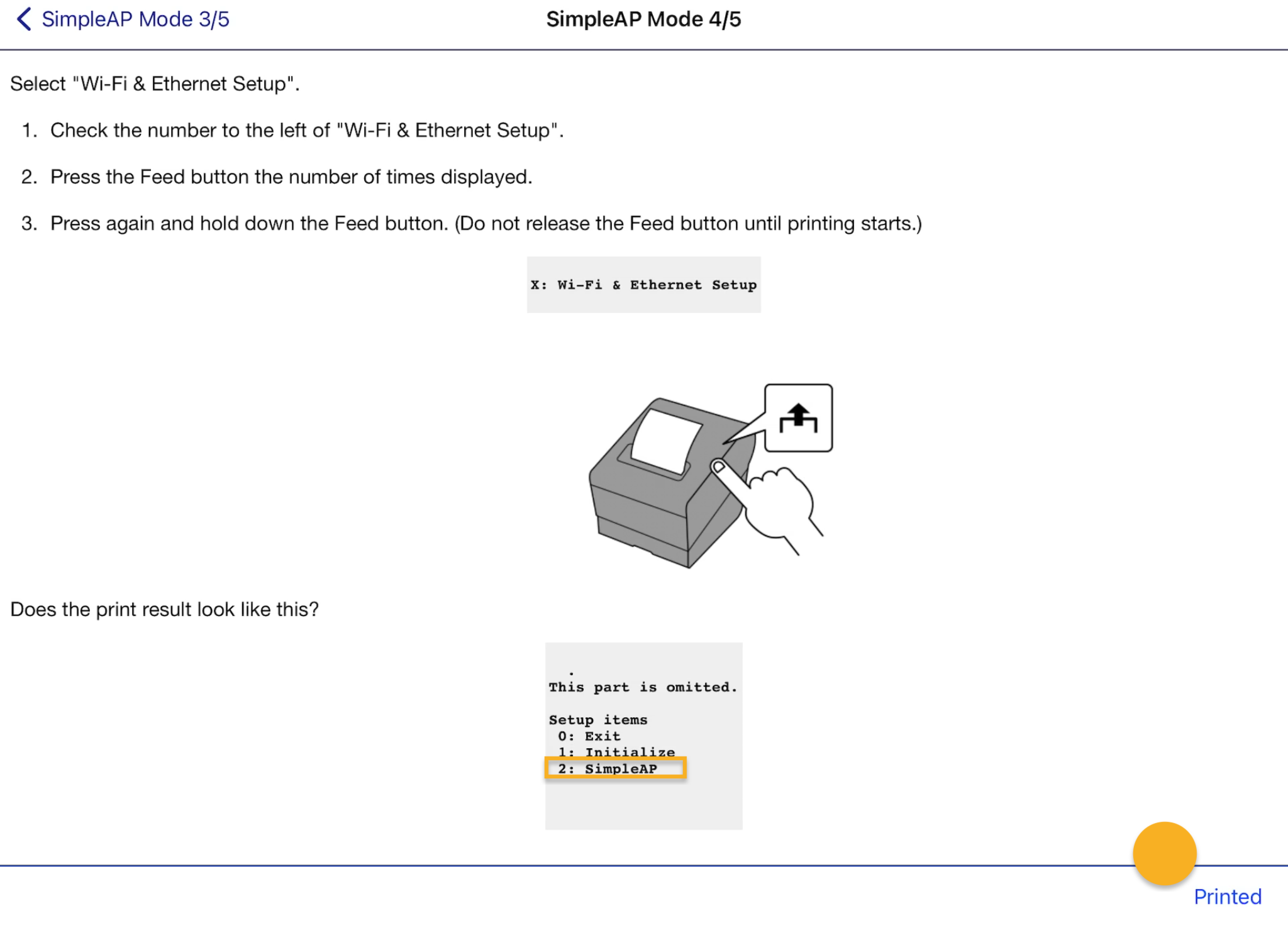

  1. Select Printed
    NOTE: If the SimpleAP Start slip did not print, return to the Factory Reset instructions above, then begin again at Step 1
  1. Select Next
    NOTE: The iPad will launch Safari
  1. Select Allow to install a temporary network configuration
  1. Select Close to dismiss
  1. Select Back to return to the TM Utility app
  1. Select Open to allow Safari to launch the TM Utility app
  1. Wait for the iPad to connect to the Printer
  1. Enter the Network Name (SSID)
  2. Select Next
  1. Select WPA2-PSK(TKIP/AES) as the security type
  2. Select Next
  1. Enter the Network Password
  2. Select Next
  1. Toggle OFF Auto (DHCP)
  1. Enter the IP address
  2. Enter the Subnet Mask
  3. Enter the Default Gateway
  4. Select Next
  1. Select Set to Printer after reviewing the information for accuracy
  1. Select Next
  1. Select Yes
  1. Select OK
  1. Select Finish



Tips and Tricks

  • Be patient and take your time!
  • Watch for typos! IP addresses are an exact science!
  • IMPORTANT! All devices on the same network must have IP addresses within the same IP scheme, and every device must have a unique address. For example, an IP scheme of 172.16.10.___ may be able to accommodate devices with addresses from 172.16.10.2 to 172.16.10.254, but if two devices have the same address, neither device will work.
  • Every network is different. When in doubt, always contact your Network Management Team.
